BOMAG

CR 362 L

Asphalt Paver

Paving Width - max
240 in
Gross Power
160.0 hp
Length w/ Screed
96 in
All asphalt pavers

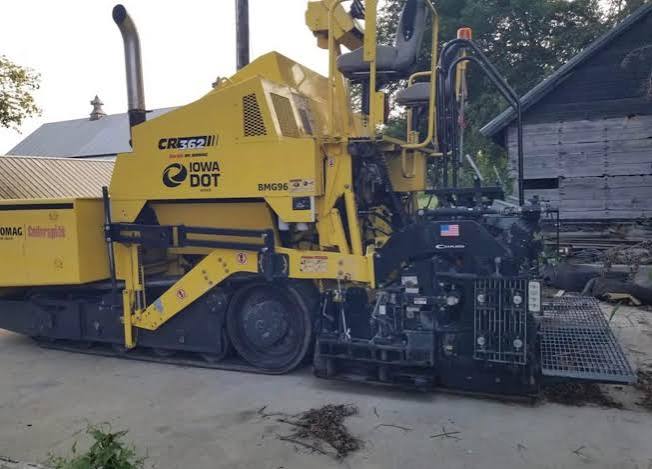

BOMAG CR 362 L Asphalt Paver
1 / 5
Image 1 of 5
Image: power-equip.com

Specifications

42 data points

Operating Specifications

Operating Specifications specifications
Operating Weight34,560 lb
Fuel Capacity62.0 gal
Hydraulic System Fluid Capacity50.0 gal
Operating Voltage12 V
Cooling System Fluid Capacity6.0 gal

Engine

Engine specifications
Engine ModelQSB4.5
Power Measured @2,200 rpm
Gross Power160.0 hp
AspirationTurbocharged
Engine MakeCummins
MakeCummins
Emission Tier LevelTier 3

Weights

Weights specifications
Tractor Weight27,950 lb
Tractor Weight - with Fastach 8 and hydroflated tires28,760 lb
Tractor Weight - with Stretch 16 and hydroflated tires31,450 lb

Dimensions

Dimensions specifications
Wheelbase100 in
Overall Length446 in
Transport Width110 in
Track Width10 in
Length w/ Screed96 in

Brakes & Steering

Brakes & Steering specifications
Parking brakeMultiple disc

Hopper/Paver

Hopper/Paver specifications
Paving Width - max240 in
Paving Speed - max2.8 mph
Hopper Capacity20,000 lb
Travel Speed - max8.8 mph
Auger Diameter14 in
Hopper Length70 in
Auger ConstructionCast High alloy
Auger Thickness1 in
Feed Tunnel Width25 in
Hopper Volume5.90 yd³
Hopper Width118 in
Paving Depth - max12 in
Slat Conveyor Liner Thickness0 in

Screed

Screed specifications
Fastach 8 (electric heat) generator26.9 hp
Fastach 8 (two oil heaters) 178,000 BTU1.3 gph
Negative crown1 in
Positive crown3 in
Screed plate thickness1 in
Stretch 16 (four oil heaters) 274,000 BTU (total)2.0 gph
Stretchà ® 16 (electric heat) generator26.9 hp
Vibrations per minute (max)3,000
