BOMAG

CR 662 RM

Asphalt Paver

Paving Width - max
360 in
Gross Power
260.0 hp
Length w/ Screed
120 in
All asphalt pavers
BOMAG CR 662 RM Asphalt Paver
1 / 5

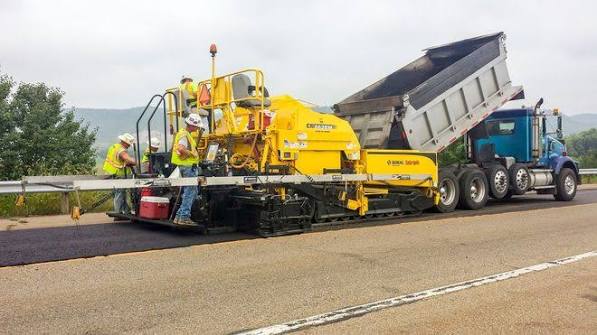

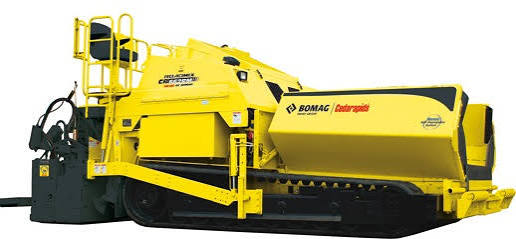

Image 1 of 5
Image: heavyequipmentguide.ca

Specifications

37 data points

Operating Specifications

Operating Specifications specifications
Operating Weight48,300 lb
Fuel Capacity72.0 gal
Hydraulic System Fluid Capacity75.0 gal
Operating Voltage12 V
Cooling System Fluid Capacity6.5 gal

Engine

Engine specifications
Engine ModelQSB6.7
Power Measured @2,200 rpm
Gross Power260.0 hp
AspirationTurbocharged
Engine MakeCummins
MakeCummins
Emission Tier LevelTier 4f

Weights

Weights specifications
Tractor Weight36,200 lb
Tractor Weight - with Fastach 8 and hydroflated tires40,200 lb
Tractor Weight - with Stretch 16 and hydroflated tires44,100 lb

Dimensions

Dimensions specifications
Length w/ Screed120 in

Brakes & Steering

Brakes & Steering specifications
Parking brakeMultiple disc

Hopper/Paver

Hopper/Paver specifications
Paving Width - max360 in
Paving Speed - max2.6 mph
Hopper Capacity30,000 lb
Travel Speed - max9.6 mph
Auger Diameter16 in
Hopper Length90 in
Auger ConstructionCast High alloy
Auger Thickness1 in
Feed Tunnel Width30 in
Hopper Volume9.90 yd³
Hopper Width119 in
Paving Depth - max12 in

Screed

Screed specifications
Fastach 8 (electric heat) generator45.6 hp
Fastach 8 (two oil heaters) 178,000 BTU1.3 gph
Negative crown1 in
Positive crown3 in
Screed plate thickness1 in
Stretch 16 (four oil heaters) 274,000 BTU (total)2.0 gph
Stretchà ® 16 (electric heat) generator45.6 hp
Vibrations per minute (max)3,000
