BOMAG

CR 652 RX

Asphalt Paver

Paving Width - max
360 in
Gross Power
260.0 hp
Length w/ Screed
120 in
All asphalt pavers

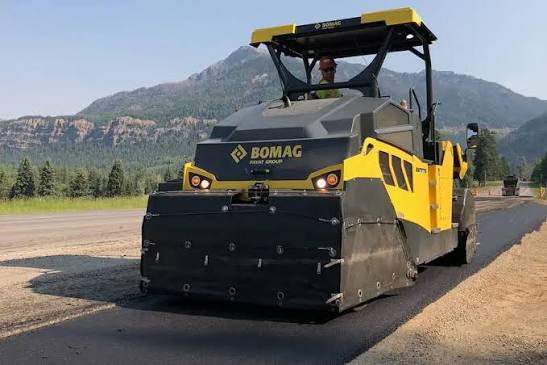

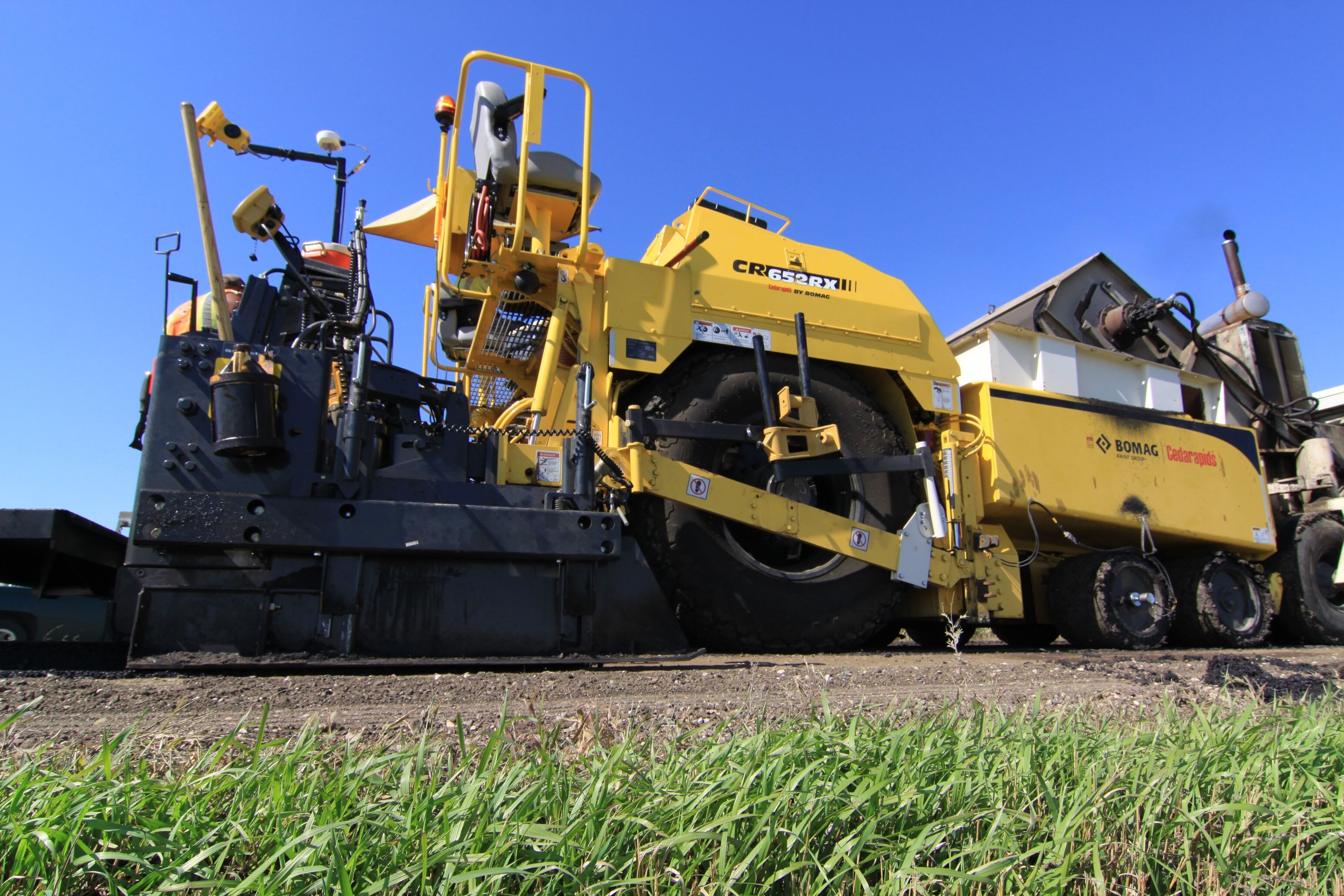

BOMAG CR 652 RX Asphalt Paver
1 / 5
Image 1 of 5
Image: government-fleet.com

Specifications

43 data points

Operating Specifications

Operating Specifications specifications
Operating Weight44,100 lb
Fuel Capacity72.0 gal
Hydraulic System Fluid Capacity75.0 gal
Operating Voltage12 V
Cooling System Fluid Capacity6.5 gal

Engine

Engine specifications
Engine ModelQSB6.7
Power Measured @2,200 rpm
Gross Power260.0 hp
AspirationTurbocharged
Engine MakeCummins
MakeCummins
Emission Tier LevelTier 4f

Weights

Weights specifications
Tractor Weight36,415 lb
Tractor Weight - with Fastach 8 and hydroflated tires40,415 lb
Tractor Weight - with Stretch 16 and hydroflated tires44,315 lb

Dimensions

Dimensions specifications
Overall Length489 in
Transport Width90 in
Transport Height108 in
Track Width21 in
Length w/ Screed120 in

Brakes & Steering

Brakes & Steering specifications
Parking brakeMultiple disc

Tires & Wheels

Tires & Wheels specifications
Drive Tires32.10 in (81.53 cm)
Front Wheels22 in

Hopper/Paver

Hopper/Paver specifications
Paving Width - max360 in
Paving Speed - max4.8 mph
Hopper Capacity30,000 lb
Travel Speed - max11.2 mph
Auger Diameter16 in
Hopper Length90 in
Auger ConstructionCast High alloy
Auger Thickness1 in
Feed Tunnel Width30 in
Hopper Volume9.90 yd³
Hopper Width119 in
Paving Depth - max12 in

Screed

Screed specifications
Fastach 8 (electric heat) generator45.6 hp
Fastach 8 (two oil heaters) 178,000 BTU1.3 gph
Negative crown1 in
Positive crown3 in
Screed plate thickness1 in
Stretch 16 (four oil heaters) 274,000 BTU (total)2.0 gph
Stretchà ® 16 (electric heat) generator45.6 hp
Vibrations per minute (max)3,000
