BOMAG

MP600

Cold Planer

Cutting Width
24 in
Displacement
291 in³
Gross Power
173.0 hp
All cold planers/milling machines

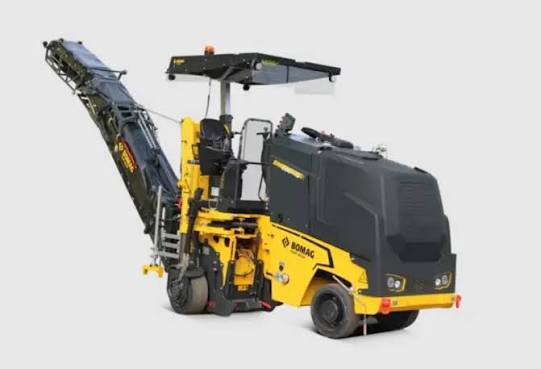

BOMAG MP600 Cold Planer
1 / 5
Image 1 of 5
Image: power-equip.com

Specifications

22 data points

Operating Specifications

Operating Specifications specifications
Operating Speed1.4 mph
Travel Speed3.5 mph
Fuel Capacity74.0 gal
Water Spray System Fluid Capacity153.3 gal
Shipping Weight - Empty29,763 lb
Hydraulic System Fluid Capacity28.6 gal
Operating Voltage24 V
Alternator Supplied Amperage55 A

Engine

Engine specifications
Engine ModelBF4M1013FC-EMR
Displacement291 in³
Gross Power173.0 hp

Dimensions

Dimensions specifications
Shipping Height101 in
Shipping Length361 in
Shipping Width66 in
Operating Length445 in
Max Operating Height135 in

Conveyor System

Conveyor System specifications
Discharge Conveyor Width16 in

Rotary Cutter

Rotary Cutter specifications
Cutting Width24 in
Cutting Depth14 in
Number of Tools79
Tool Spacing1 in
Cutter Diameter42 in
