Broderson

IC-80-1G

Carrydeck Crane

Operating Weight
16,060 lb
Max Lift Capacity
18,000 lb
Max Speed - Forward
20.0 mph
All carrydeck cranes

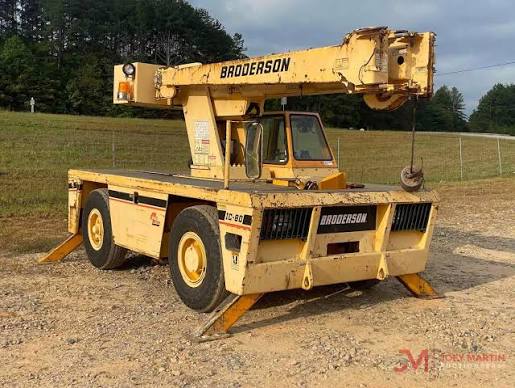

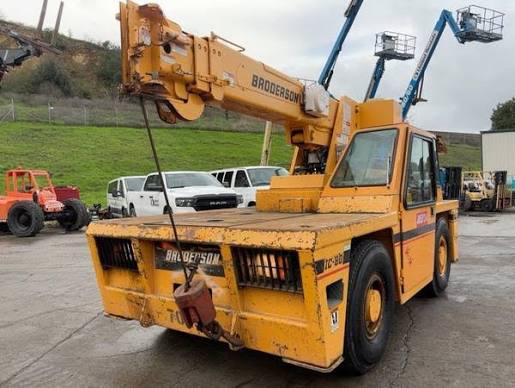

Broderson IC-80-1G Carrydeck Crane
1 / 5
Image 1 of 5
Image: wppecrane.com

Specifications

31 data points

Operating Specifications

Operating Specifications specifications
Operating Weight16,060 lb
Operating Voltage12 V
Tire Size10.00x15
Alternator Supplied Amperage66 A
Fuel Capacity20.0 gal
Hydraulic System Fluid Capacity25.0 gal

Engine

Engine specifications
Engine ModelGM 3.0 EFI
Displacement181 in³
Gross Power69.0 hp
Max Torque163 lb-ft

Dimensions

Dimensions specifications
Ground Clearance7 in
Wheelbase7 in
Transport Width78 in
Transport Height88 in
Transport Length161 in
Width w/ Outriggers Extended115 in
Upper Structure Tail Swing Radius57 in
Carrier/Base Length155 in

Transmission

Transmission specifications
Max Speed - Forward20.0 mph
Max Speed - Reverse20.0 mph
Transmission Typepowershift
Number of Forward Gears4
Number of Reverse Gears4

Boom

Boom specifications
Max Lift Capacity18,000 lb
Max Elevating Angle70 °
Max Height @ Max Raise Angle - no jib339 in
Min Height @ Max Raise Angle204 in
Number of Sections3
Swing Speed2 rpm
Max Operating Radius240 in
Min Operating Radius60 in
