Grove

AP308

Carrydeck Crane

Gross Power
65.8 hp
Operating Weight
15,461 lb
Max Lift Capacity
17,000 lb
Max Speed - Forward
16.8 mph
All carrydeck cranes

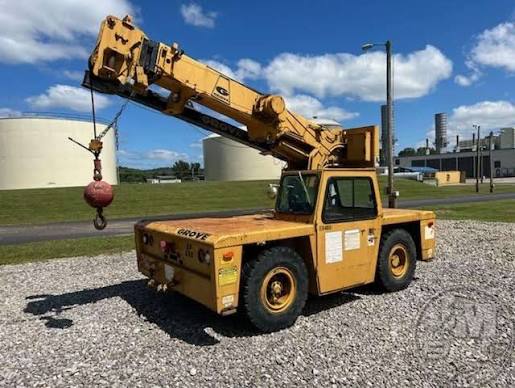

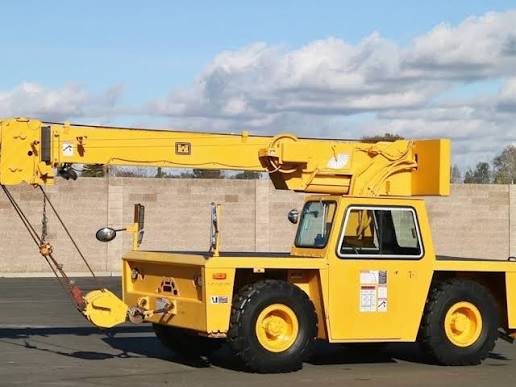

Grove AP308 Carrydeck Crane
1 / 5
Image 1 of 5
Image: salvagesale.com

Specifications

31 data points

Operating Specifications

Operating Specifications specifications
Operating Weight15,461 lb
Operating Voltage12 V
Tire Size10.00X15-16PR
Carrier Fuel Capacity30.2 gal
Number of Axels2
Upper Structure Hydraulic System Fluid Capacity30.2 gal

Dimensions

Dimensions specifications
Ground Clearance18 in
Transport Width85 in
Transport Height94 in
Transport Length182 in
Width w/ Outriggers Extended131 in
Upper Structure Tail Swing Radius43 in
Carrier Length157 in

Transmission

Transmission specifications
Max Speed - Forward16.8 mph
Transmission Typeautomatic
Number of Forward Gears3
Number of Reverse Gears1

Boom

Boom specifications
Max Lift Capacity17,000 lb
Max Elevating Angle70 °
Max Height @ Max Raise Angle - no jib288 in
Min Height @ Max Raise Angle126 in
Number of Sections3
Swing Speed2 rpm
Max Working Radius264 in
Min Working Radius60 in

CARRIER ENGINE

CARRIER ENGINE specifications
Gross Power65.8 hp
Displacement165 in³
MakeGrove
Power Measured @2,800 rpm
Max Torque106 lb-ft
Torque Measured @1,800 rpm
