Shuttlelift

3339

Carrydeck Crane

Gross Power
99.0 hp
Operating Weight
15,801 lb
Max Lift Capacity
18,000 lb
Max Speed - Forward
22.2 mph
All carrydeck cranes

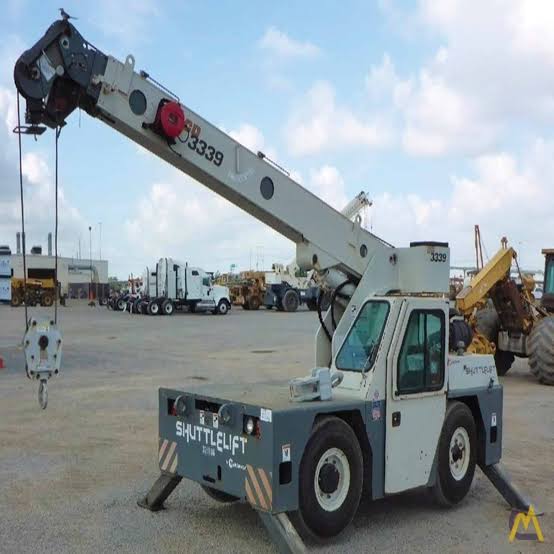

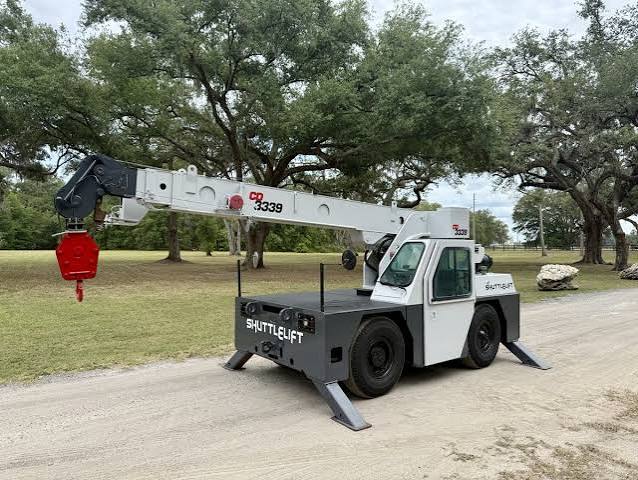

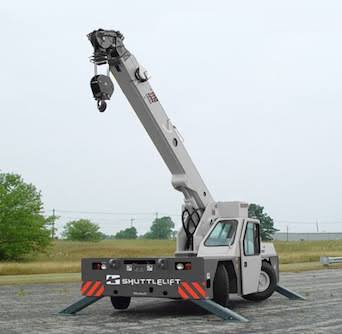

Shuttlelift 3339 Carrydeck Crane
1 / 5
Image 1 of 5
Image: bigge.com

Specifications

30 data points

Operating Specifications

Operating Specifications specifications
Operating Weight15,801 lb
Operating Voltage12 V
Tire Size10.00x15 14PR
Carrier Fuel Capacity18.5 gal
Number of Axels2
Alternator Supplied Amperage63 A
Upper Structure Hydraulic System Fluid Capacity23.6 gal

Dimensions

Dimensions specifications
Ground Clearance11 in
Transport Width78 in
Transport Height88 in
Transport Length211 in
Width w/ Outriggers Extended122 in
Upper Structure Tail Swing Radius53 in
Carrier Length144 in

Transmission

Transmission specifications
Max Speed - Forward22.2 mph
Transmission TypeClark synchromesh
Number of Forward Gears4
Number of Reverse Gears4

Boom

Boom specifications
Max Lift Capacity18,000 lb
Max Elevating Angle72 °
Max Height @ Max Raise Angle - no jib395 in
Min Height @ Max Raise Angle166 in
Number of Sections3
Swing Speed2 rpm
Max Working Radius372 in
Min Working Radius60 in

CARRIER ENGINE

CARRIER ENGINE specifications
Gross Power99.0 hp
Displacement201 in³
MakeShuttlelift
Power Measured @2,600 rpm
