Case IH
Fendt
817
Tractor
23 specifications
1 / 5

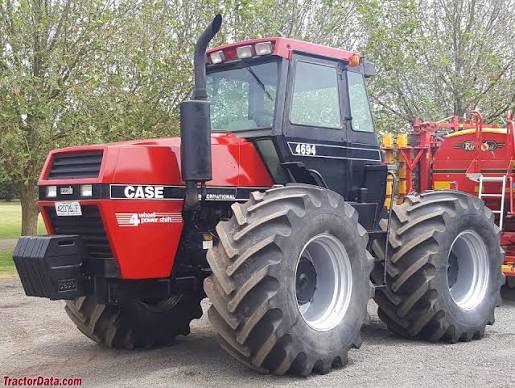

Image 1 of 5
Specifications
38 data points
Operating Specifications
| Operating Weight | 22,309 lb |
|---|---|
| Fuel Capacity | 128.0 gal |
| 3 Point Hitch Lift Capacity @ 24 inches | 12,750 lb |
| 3 Point Hitch Type | III |
| Operating Voltage | 12 V |
| Cooling System Fluid Capacity | 12.0 gal |
| Hydraulic System Fluid Capacity | 15.5 gal |
| Engine Oil Capacity | 6.0 gal |
| Front Tire Size | 18.4-34 |
| Rear Tire Size | 18.4-34 |
Engine
| Displacement | 507 in³ |
|---|---|
| Power Measured @ | 2,100 rpm |
| Gross Power | 261.0 hp |
| Number of Cylinders | 6 |
| Aspiration | Turbocharged |
| Torque Measured @ | 1,650 rpm |
| Engine Make | CaseIH |
| PTO Power | 219.0 hp |
| Stroke | 5 in |
| Bore | 5 in |
| Torque | 680 lb-ft |
Hydraulic System
| Pump Flow Capacity | 31.0 gal/min |
|---|---|
| Number of Remote Control Valves | — |
| Relief Valve Pressure | 2,350 psi |
| Hydraulic System Type | Closed center |
Dimensions
| Height - Top of Cab | 126 in |
|---|---|
| Wheelbase | 102 in |
| Overall Length | 225 in |
| Width Outside Frame | 96 in |
| Rear Tread Range | 139 in |
| Front Tread Range | 139 in |
Transmission
| Max Speed - Reverse | 17.4 mph |
|---|---|
| Max Speed - Forward | 17.4 mph |
| Number of Forward Gears | 12 |
| Transmission Type | Partial power shift |
| Number of Reverse Gears | 4 |
Production
| Series | 4WD 94 Series |
|---|---|
| Years Manufactured | 1,984 – 1,987 |
