Case IH

8920

Tractor

Operating Weight
17,417 lb
Displacement
507 in³
Power Measured @
2,200 rpm
Gross Power
172.0 hp
All tractors

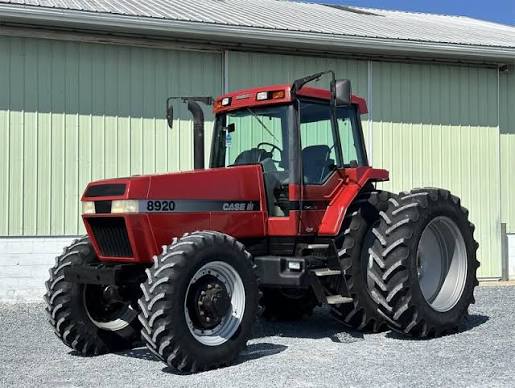

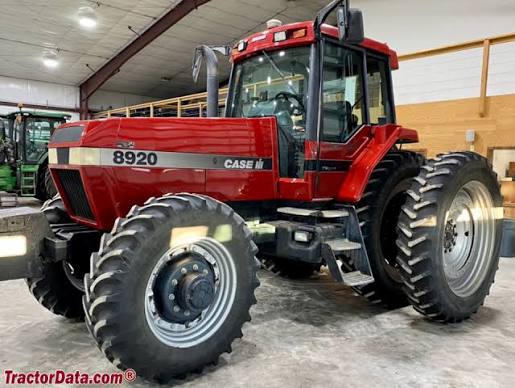

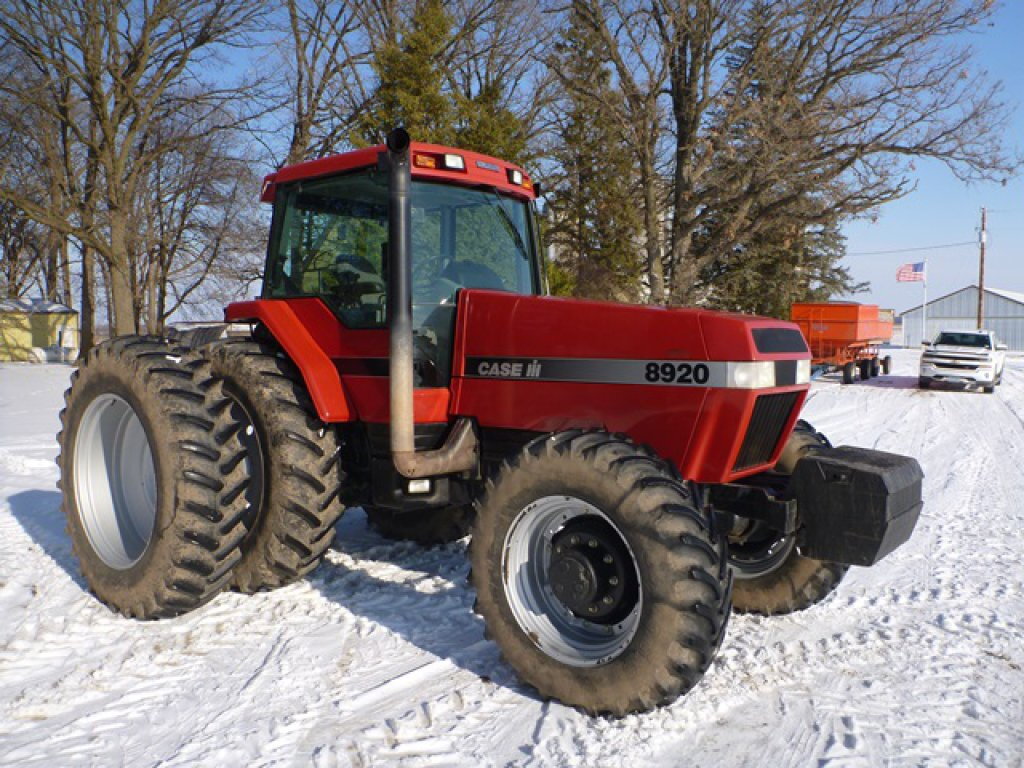

Case IH 8920 Tractor
1 / 5
Image 1 of 5
Image: agweb.com

Specifications

26 data points

Operating Specifications

Operating Specifications specifications
Operating Weight17,417 lb
Fuel Capacity87.0 gal
3 Point Hitch Lift Capacity @ 24 inches10,000 lb
Alternator Supplied Amperage110 A
Operating Voltage12 V
Tire Size Front - 2wd / 4wd14L-16.1
Hydraulic System Fluid Capacity45.5 gal

Engine

Engine specifications
Displacement507 in³
Power Measured @2,200 rpm
Gross Power172.0 hp
Number of Cylinders6
Engine MakeCaseIH
PTO Power155.0 hp
Stroke5 in
Bore5 in

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity29.0 gal/min
Number of Remote Control Valves—
Pump TypeClosed center pressure-flow compensated
Maximum system pressure2,200 psi

Dimensions

Dimensions specifications
Wheelbase119 in

Transmission

Transmission specifications
Number of Forward Gears18
Transmission TypeFull power shift
Number of Reverse Gears4

Tires & Wheels

Tires & Wheels specifications
Rear Tires Size20.8R-42

Production

Production specifications
SeriesMagnum 8900 Series
Years Manufactured1,997 – 1,998
