Case IH

8950

Tractor

Operating Weight
18,340 lb
Displacement
507 in³
Power Measured @
2,200 rpm
Gross Power
250.0 hp
All tractors

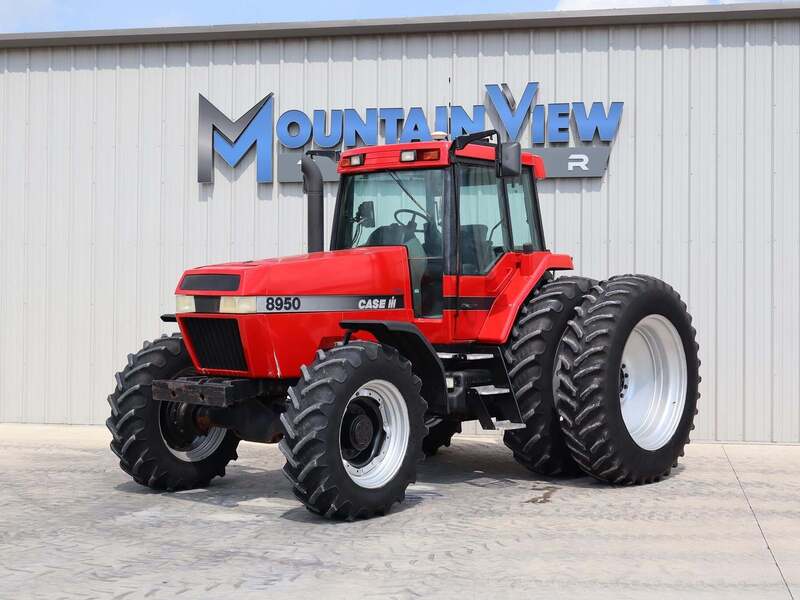

Case IH 8950 Tractor
1 / 5
Image 1 of 5
Image: machinerypete.com

Specifications

25 data points

Operating Specifications

Operating Specifications specifications
Operating Weight18,340 lb
Fuel Capacity117.0 gal
Alternator Supplied Amperage110 A
Operating Voltage12 V
Tire Size Front - 2wd / 4wd16.9R-30
Cooling System Fluid Capacity7.8 gal
Hydraulic System Fluid Capacity45.5 gal
Engine Oil Capacity5.5 gal

Engine

Engine specifications
Displacement507 in³
Power Measured @2,200 rpm
Gross Power250.0 hp
Number of Cylinders6
PTO Power225.0 hp
Bore5 in
Stroke5 in

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity29.0 gal/min
Number of Remote Control Valves—

Dimensions

Dimensions specifications
Wheelbase119 in
Front Axle Clearance20 in

Transmission

Transmission specifications
Number of Forward Gears18
Transmission TypeFull power shift
Number of Reverse Gears4

Tires & Wheels

Tires & Wheels specifications
Rear Tires Size18.4R-46

Production

Production specifications
SeriesMagnum 8900 Series
Years Manufactured1,997 – 1,998
