Case IH
Fendt
817
Tractor
23 specifications
1 / 5

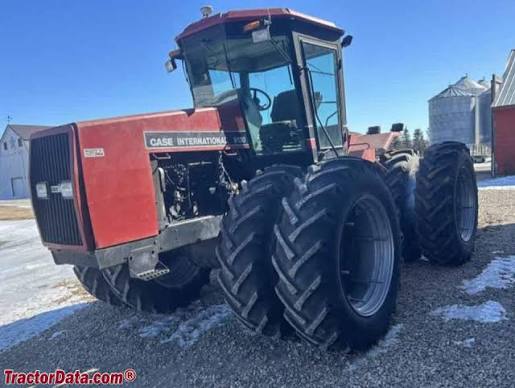

Image 1 of 5
Specifications
41 data points
Operating Specifications
| Operating Weight | 17,600 lb |
|---|---|
| Fuel Capacity | 115.0 gal |
| 3 Point Hitch Lift Capacity @ 24 inches | 12,750 lb |
| 3 Point Hitch Type | III |
| Turning Radius | 170 in |
| Operating Voltage | 12 V |
| Cooling System Fluid Capacity | 9.6 gal |
| Hydraulic System Fluid Capacity | 18.0 gal |
| Engine Oil Capacity | 5.5 gal |
| Front Tire Size | 18.4-38 |
| Rear Tire Size | 18.4-38 |
Engine
| Engine Model | CDC 6CTA |
|---|---|
| Displacement | 507 in³ |
| Power Measured @ | 2,100 rpm |
| Gross Power | 220.0 hp |
| Number of Cylinders | 6 |
| Aspiration | Turbocharged |
| Torque Measured @ | 1,500 rpm |
| Engine Make | Cummins |
| PTO Power | 190.0 hp |
| Stroke | 5 in |
| Bore | 5 in |
| Torque | 715 lb-ft |
Hydraulic System
| Pump Flow Capacity | 27.0 gal/min |
|---|---|
| Number of Remote Control Valves | — |
| Relief Valve Pressure | 2,500 psi |
| Hydraulic System Type | Closed center |
Dimensions
| Ground Clearance | 21 in |
|---|---|
| Height - Top of Cab | 130 in |
| Wheelbase | 124 in |
| Overall Length | 241 in |
| Width Outside Frame | 120 in |
| Rear Tread Range | 130 in |
| Front Tread Range | 130 in |
Transmission
| Max Speed - Reverse | 4.6 mph |
|---|---|
| Max Speed - Forward | 16.6 mph |
| Number of Forward Gears | 12 |
| Transmission Type | Full power shift |
| Number of Reverse Gears | 2 |
Production
| Series | 9100 Series |
|---|---|
| Years Manufactured | 1,986 – 1,990 |
