Case IH

MAGNUM 240

Tractor

Operating Weight
22,304 lb
Displacement
409 in³
Power Measured @
2,200 rpm
Gross Power
240.0 hp
All tractors

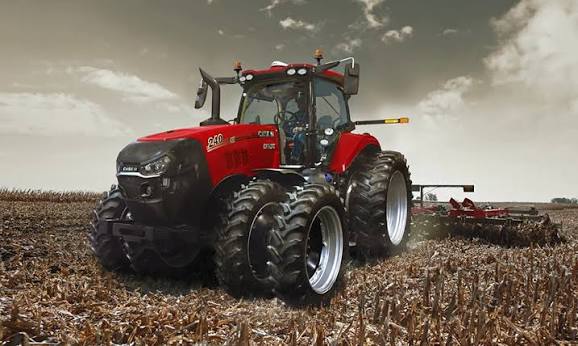

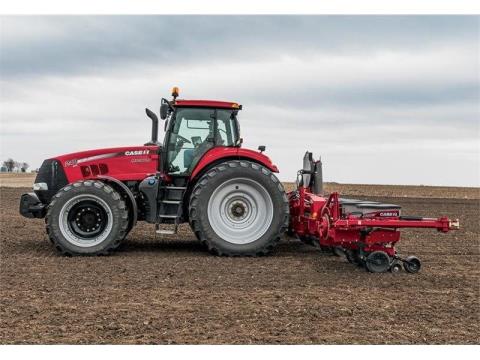

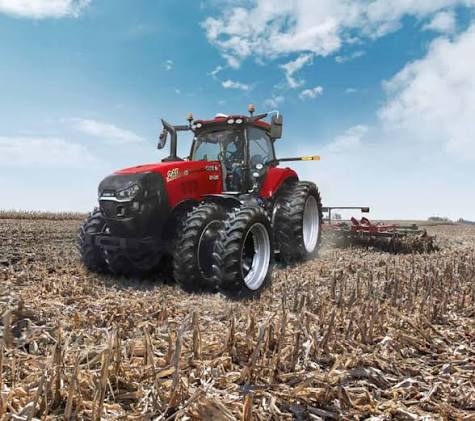

Case IH MAGNUM 240 Tractor
1 / 5
Image 1 of 5
Image: rameymotorpowersports.com

Specifications

21 data points

Operating Specifications

Operating Specifications specifications
Operating Weight22,304 lb
Fuel Capacity160.0 gal
3 Point Hitch Lift Capacity @ 24 inches14,099 lb
Operating Voltage12 V
DEF tank capacity17.5 gal

Engine

Engine specifications
Displacement409 in³
Power Measured @2,200 rpm
Gross Power240.0 hp
Number of Cylinders6
Engine MakeCaseIH
PTO Power205.0 hp
Stroke5 in
Bore4 in

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity43.0 gal/min
Pump TypePressure flow compensating

Dimensions

Dimensions specifications
Wheelbase119 in
Overall Length234 in
Height - Top of ROPS/FOPS128 in

Transmission

Transmission specifications
Transmission TypeContinuously variable transmission

Production

Production specifications
SeriesMagnum Series
Years Manufactured—
