Case IH
MAXXUM 100
- Operating Weight
- 10,626 lb
- Displacement
- 275 in³
- Power Measured @
- 2,200 rpm
- Gross Power
- 110.0 hp
1 / 5

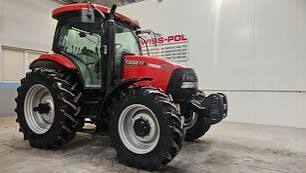

Image 1 of 5
Specifications
18 data points
Operating Specifications
| Operating Weight | 10,626 lb |
|---|---|
| Fuel Capacity | 46.5 gal |
| 3 Point Hitch Lift Capacity @ 24 inches | 9,620 lb |
| Alternator Supplied Amperage | 120 A |
Engine
| Displacement | 275 in³ |
|---|---|
| Power Measured @ | 2,200 rpm |
| Gross Power | 110.0 hp |
| Number of Cylinders | 4 |
| Aspiration | Turbocharged aftercooled |
| PTO Power | 90.0 hp |
Hydraulic System
| Pump Flow Capacity | 37.0 gal/min |
|---|---|
| Number of Remote Control Valves | 2 |
Dimensions
| Wheelbase | 96 in |
|---|---|
| Height - Top of ROPS/FOPS | 115 in |
Transmission
| Number of Forward Gears | 16 |
|---|---|
| Transmission Type | Semi Powershift |
| Number of Reverse Gears | 16 |
Tires & Wheels
| Rear Tires Size | 18.4R34 |
|---|
