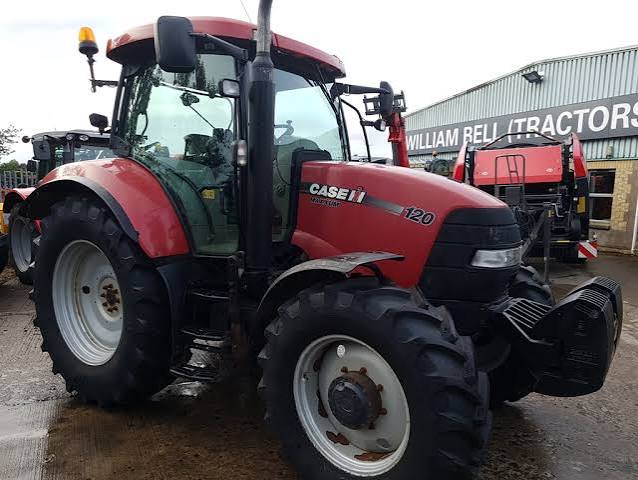

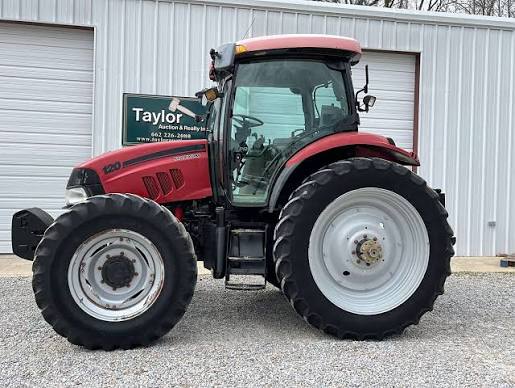

Case IH
MAXXUM 120
- Operating Weight
- 11,281 lb
- Displacement
- 458 in³
- Power Measured @
- 2,200 rpm
- Gross Power
- 122.0 hp
1 / 5
Image 1 of 5
Specifications
24 data points
Operating Specifications
| Operating Weight | 11,281 lb |
|---|---|
| Fuel Capacity | 75.0 gal |
| 3 Point Hitch Lift Capacity @ 24 inches | 8,724 lb |
| Operating Voltage | 12 V |
| Hydraulic System Fluid Capacity | 23.8 gal |
Engine
| Displacement | 458 in³ |
|---|---|
| Power Measured @ | 2,200 rpm |
| Gross Power | 122.0 hp |
| Number of Cylinders | 6 |
| Engine Make | CaseIH |
| PTO Power | 95.0 hp |
| Stroke | 5 in |
| Bore | 5 in |
Hydraulic System
| Pump Flow Capacity | 25.0 gal/min |
|---|---|
| Number of Remote Control Valves | — |
| Pump Type | Closed-center load sensing |
| Maximum system pressure | 2,750 psi |
Dimensions
| Wheelbase | 108 in |
|---|---|
| Height - Top of ROPS/FOPS | 111 in |
Transmission
| Number of Forward Gears | 18 |
|---|---|
| Transmission Type | Partial powershift |
| Number of Reverse Gears | 6 |
Production
| Series | Maxxum Series |
|---|---|
| Years Manufactured | 2,007 – 2,014 |
