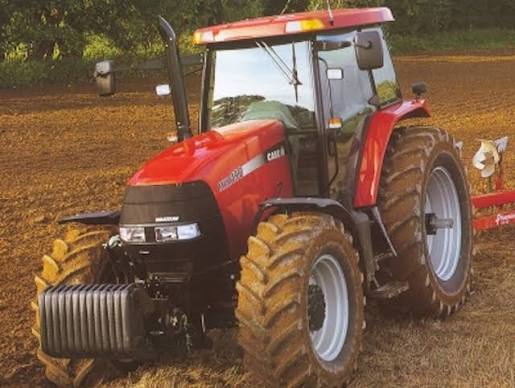

Case IH
MAXXUM 190
- Operating Weight
- 17,469 lb
- Displacement
- 458 in³
- Power Measured @
- 2,200 rpm
- Gross Power
- 190.0 hp
1 / 5
Image 1 of 5
Specifications
23 data points
Operating Specifications
| Operating Weight | 17,469 lb |
|---|---|
| Fuel Capacity | 105.0 gal |
| 3 Point Hitch Lift Capacity @ 24 inches | 17,084 lb |
| Operating Voltage | 12 V |
| Hydraulic System Fluid Capacity | 23.8 gal |
Engine
| Displacement | 458 in³ |
|---|---|
| Power Measured @ | 2,200 rpm |
| Gross Power | 190.0 hp |
| Number of Cylinders | 6 |
| Engine Make | CaseIH |
| PTO Power | 160.0 hp |
| Stroke | 5 in |
| Bore | 5 in |
Hydraulic System
| Pump Flow Capacity | 26.0 gal/min |
|---|---|
| Number of Remote Control Valves | 5 |
| Pump Type | Closed-center load sensing |
| Maximum system pressure | 2,750 psi |
Dimensions
| Wheelbase | 111 in |
|---|---|
| Overall Length | 184 in |
| Height - Top of ROPS/FOPS | 114 in |
Transmission
| Number of Forward Gears | 19 |
|---|---|
| Transmission Type | Full powershift |
| Number of Reverse Gears | 6 |
