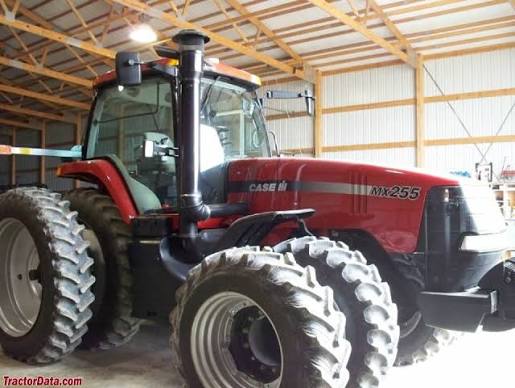

Case IH
MX255
- Operating Weight
- 20,199 lb
- Displacement
- 507 in³
- Power Measured @
- 2,000 rpm
- Gross Power
- 262.0 hp
1 / 5
Image 1 of 5
Specifications
26 data points
Operating Specifications
| Operating Weight | 20,199 lb |
|---|---|
| Fuel Capacity | 42.3 gal |
| 3 Point Hitch Lift Capacity @ 24 inches | 14,969 lb |
| Operating Voltage | 12 V |
| Hydraulic System Fluid Capacity | 45.5 gal |
Engine
| Displacement | 507 in³ |
|---|---|
| Power Measured @ | 2,000 rpm |
| Gross Power | 262.0 hp |
| Number of Cylinders | 6 |
| Torque Measured @ | 1,400 rpm |
| Max Torque | 1,670 lb-ft |
| Engine Make | CaseIH |
| PTO Power | 215.0 hp |
| Stroke | 5 in |
| Bore | 5 in |
Hydraulic System
| Pump Flow Capacity | 38.6 gal/min |
|---|---|
| Number of Remote Control Valves | 5 |
| Pump Type | Closed center pressure flow compensated |
| Maximum system pressure | 2,950 psi |
Dimensions
| Wheelbase | 119 in |
|---|---|
| Height - Top of ROPS/FOPS | 125 in |
Transmission
| Number of Forward Gears | 18 |
|---|---|
| Transmission Type | Full power shift |
| Number of Reverse Gears | 4 |
Production
| Series | Magnum Series |
|---|---|
| Years Manufactured | 2,003 – 2,006 |
