Massey Ferguson

6180

Tractor

Operating Weight
12,401 lb
Displacement
366 in³
Gross Power
119.4 hp
All tractors

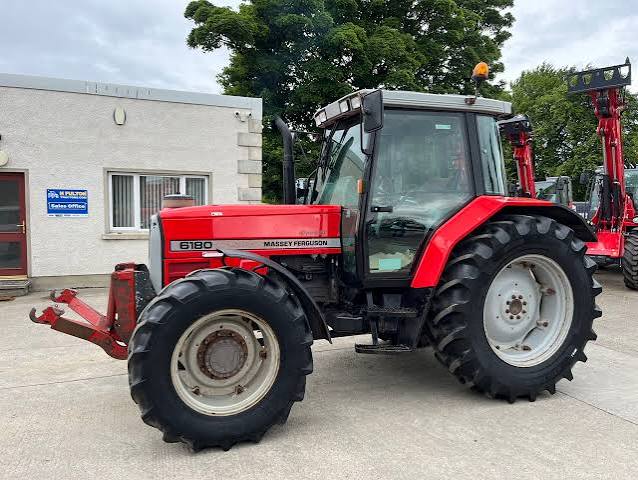

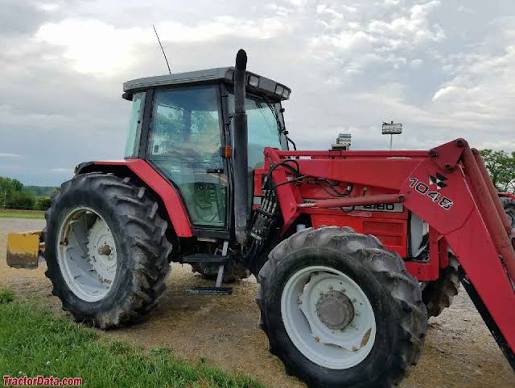

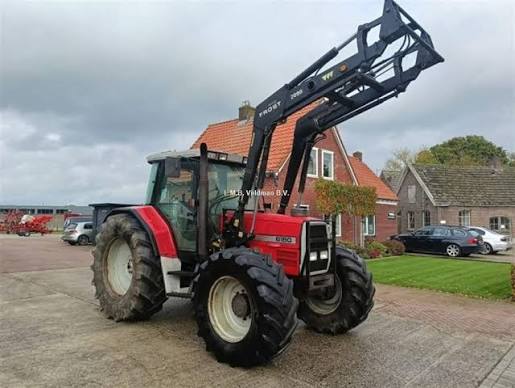

Massey Ferguson 6180 Tractor
1 / 5
Image 1 of 5
Image: tractors.fandom.com

Specifications

22 data points

Operating Specifications

Operating Specifications specifications
Operating Weight12,401 lb
Fuel Capacity42.1 gal
3 Point Hitch Lift Capacity @ 24 inches8,999 lb
Tire Size Front - 2wd / 4wd18.4R-38
Hydraulic System Fluid Capacity18.0 gal

Engine

Engine specifications
Displacement366 in³
Gross Power119.4 hp
Number of Cylinders6
AspirationTurbocharged
Engine MakePerkins
PTO Power110.0 hp

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity14.8 gal/min
Number of Remote Control Valves2

Dimensions

Dimensions specifications
Wheelbase107 in

Transmission

Transmission specifications
Max Speed24.9 mph
Number of Forward Gears32
Transmission TypeManual / Partial Power-Shift
Number of Reverse Gears32

Tires & Wheels

Tires & Wheels specifications
Rear Tires Size10.00-16

Production

Production specifications
Series6100 Series
Years Manufactured1,995 – 1,998

Power Take-Off (PTO)

Power Take-Off (PTO) specifications
PTO speed1,000 rpm
