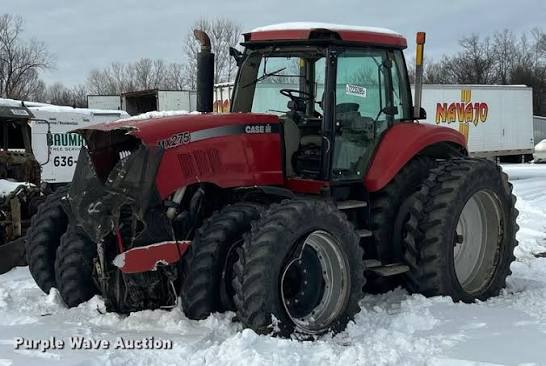

Case IH
MX275
- Operating Weight
- 21,570 lb
- Displacement
- 507 in³
- Power Measured @
- 2,000 rpm
- Gross Power
- 275.0 hp
1 / 5
Image 1 of 5
Specifications
23 data points
Operating Specifications
| Operating Weight | 21,570 lb |
|---|---|
| Fuel Capacity | 180.0 gal |
| 3 Point Hitch Lift Capacity @ 24 inches | 14,969 lb |
| Hydraulic System Fluid Capacity | 45.5 gal |
Engine
| Displacement | 507 in³ |
|---|---|
| Power Measured @ | 2,000 rpm |
| Gross Power | 275.0 hp |
| Number of Cylinders | 6 |
| Torque Measured @ | 1,400 rpm |
| Max Torque | 1,789 lb-ft |
| Engine Make | CaseIH |
| PTO Power | 225.0 hp |
| Stroke | 5 in |
| Bore | 5 in |
Hydraulic System
| Pump Flow Capacity | 38.6 gal/min |
|---|---|
| Number of Remote Control Valves | — |
Dimensions
| Wheelbase | 119 in |
|---|---|
| Height - Top of ROPS/FOPS | 128 in |
Transmission
| Number of Forward Gears | 18 |
|---|---|
| Transmission Type | Powershift |
| Number of Reverse Gears | 4 |
Production
| Series | Magnum Series |
|---|---|
| Years Manufactured | 2,006 – 2,007 |
