Case IH

STEIGER 435

Tractor

Operating Weight
51,600 lb
Displacement
787 in³
Power Measured @
2,000 rpm
All tractors

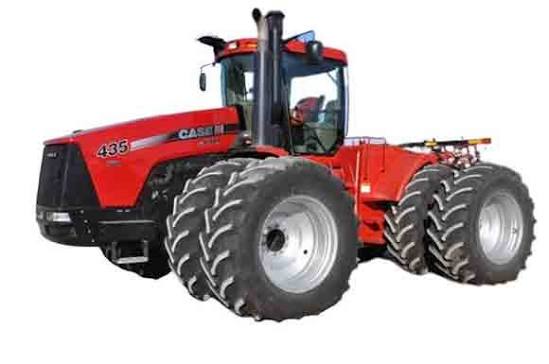

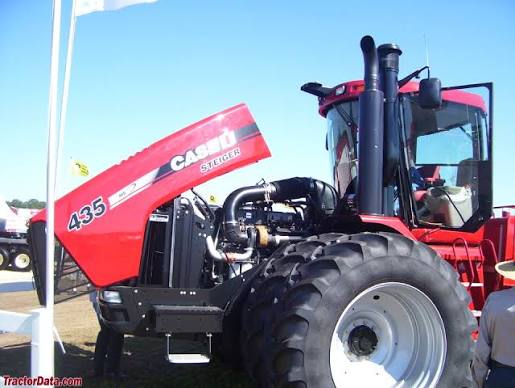

Case IH STEIGER 435 Tractor
1 / 5
Image 1 of 5
Image: agroecopower.com

Specifications

22 data points

Operating Specifications

Operating Specifications specifications
Operating Weight51,600 lb
Fuel Capacity300.0 gal
3 Point Hitch Lift Capacity @ 24 inches19,621 lb
3 Point Hitch TypeCat. IV-N
Turning Radius202 in
Drawbar Static Vertical Load Rating5,300 lb

Engine

Engine specifications
Displacement787 in³
Power Measured @2,000 rpm
Net Power435.0 hp
AspirationTurbocharger Standard
PTO Power379.0 hp
Torque Rise40.0 %

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity40.0 gal/min

Dimensions

Dimensions specifications
Wheelbase155 in
Tire Size710/70R42 Duals
Width Outside Frame44 in
Track Width30 in

Transmission

Transmission specifications
Number of Forward Gears16
Transmission TypePowershift
Number of Reverse Gears2

Axles

Axles specifications
Final DriveInboard 4-Planetary
Axle Diameter5 in
