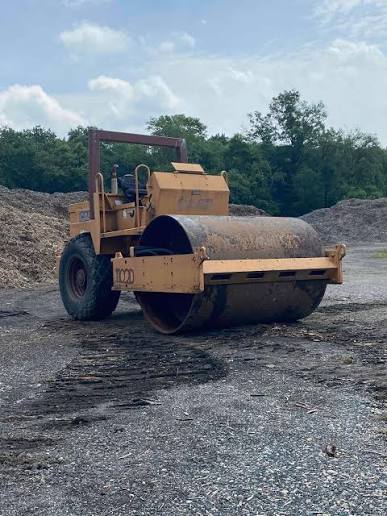

CaseVibromax
605D
Smooth Drum Roller
22 specifications
1 / 5
Image 1 of 5
Specifications
19 data points
Operating Specifications
| Operating Weight | 24,471 lb |
|---|---|
| Fuel Capacity | 74.0 gal |
| Operating Voltage | 12 V |
| Hydraulic System Fluid Capacity | 18.5 gal |
| Engine Oil Capacity | 3.5 gal |
Engine
| Engine Model | F 6 L 912 |
|---|---|
| Displacement | 345 in³ |
| Power Measured @ | 2,500 rpm |
| Net Power | 119.0 hp |
| Number of Cylinders | 6 |
| Engine Make | Duetz |
Dimensions
| Ground Clearance | 21 in |
|---|---|
| Height - Top of Cab | 119 in |
| Wheelbase | 112 in |
| Overall Length | 205 in |
| Overall Width | 91 in |
Drum
| Nominal Amplitude - High | 0 in |
|---|---|
| Centrifugal Force - High | 3,942,924 lb |
| Drum thickness | 1 in |
