Hypac

C830D

Smooth Drum Roller

Operating Weight
15,355 lb
Max Speed
6.9 mph
Drum Width
66 in
Gross Power
80.0 hp
All smooth drum rollers

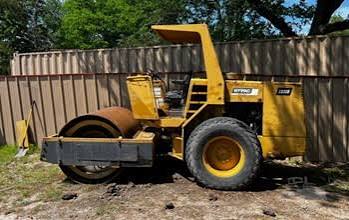

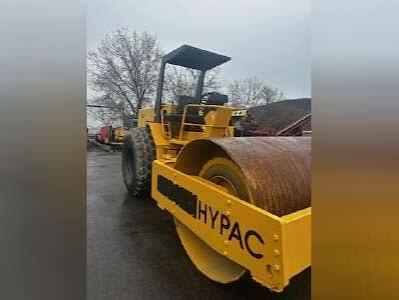

Hypac C830D Smooth Drum Roller
1 / 5
Image 1 of 5
Image: veritread.com

Specifications

23 data points

Operating Specifications

Operating Specifications specifications
Operating Weight15,355 lb
Max Speed6.9 mph
Fuel Capacity39.7 gal
Operating Voltage12 V

Engine

Engine specifications
Engine ModelB3.3
Power Measured @2,200 rpm
Gross Power80.0 hp
Number of Cylinders4
MakeCummins

Dimensions

Dimensions specifications
Ground Clearance15 in
Height - Top of Cab113 in
Wheelbase8 in
Overall Length16 in
Overall Width66 in
Turning Radius - Inside124 in

Tires & Wheels

Tires & Wheels specifications
Tires14.9-24/6PR

Drum

Drum specifications
Drum Width66 in
Drum Diameter48 in
Vibration Frequency 130 vpm
Vibration Frequency 240 vpm
Static Linear Load11 lb-ft
Frequency1,800 – 2,400 vpm
Nominal Amplitude - Med0 in
