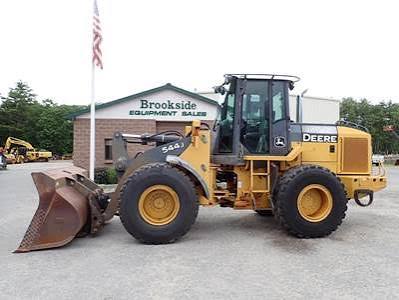

544J Waste Handler High-Lift
Wheel Loader
42 specifications
Case

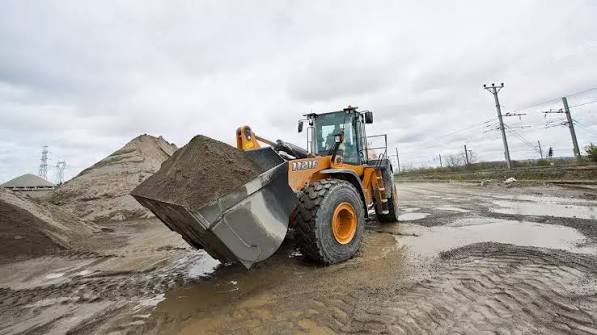

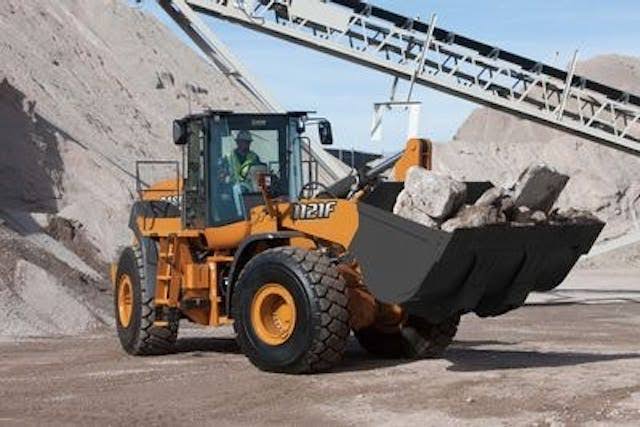

1121F
- Operating Weight
- 59,192 lb
- Bucket Capacity - heaped
- 6.30 yd³
- Gross Power
- 347.0 hp
- Net Power
- 320.0 hp
1 / 5
Image 1 of 5
Specifications
60 data points
Operating Specifications
| Operating Weight | 59,192 lb |
|---|---|
| Fuel Capacity | 125.0 gal |
| Tire Size | 26.5R25 |
| Hydraulic System Fluid Capacity | 66.0 gal |
| Static Tipping Weight | 39,051 lb |
| Turning Radius | 251 in |
| Engine Oil Fluid Capacity | 8.1 gal |
| Front Axle/Diff Fluid Capacity | 17.0 gal |
| Rear Axle/Diff Fluid Capacity | 17.0 gal |
| Cooling System Fluid Capacity | 17.4 gal |
| Transmission Fluid Capacity | 12.0 gal |
| Rated Bucket Capacity | 6.30 yd³ |
Engine
| Engine Model | FPT F2CFE614B |
|---|---|
| Displacement | 531 in³ |
| Power Measured @ | 2,100 rpm |
| Gross Power | 347.0 hp |
| Net Power | 320.0 hp |
| Number of Cylinders | 6 |
| Aspiration | Turbocharged |
| Torque Measured @ | 1,200 rpm |
| Make | Case |
| Torque Rise | 50.0 % |
| Alternator | 95 A |
| Emission Tier Level | Interim Tier 4 |
| Engine speed - Rated speed, full load | 1,800 rpm |
| Max. torque ISO14396 | 1,183 lb-ft |
Weights
| Operating Weight | 59,191 lb |
|---|
Hydraulic System
| Pump Flow Capacity | 50.2 gal/min |
|---|---|
| Raise Time | 6.5 s |
| Lower Time | 2.6 s |
| Dump Time | 1.4 s |
| Pump Type | Axial Piston Pump |
| Steering pump type | Articulation |
| Maximum system pressure | 3,649 psi |
Dimensions
| Ground Clearance | 18 in |
|---|---|
| Height - Top of Cab | 142 in |
| Wheelbase | 141 in |
| Width Over Tires | 119 in |
| Reach at Max Lift and Dump | 80 in |
| Length with Bucket on Ground | 360 in |
| Hinge Pin - Max Height | 175 in |
| Dump reach @ full height, 45 degrees dump | 50 in |
Transmission
| Max Speed - Forward | 23.2 mph |
|---|---|
| Max Speed - Reverse | 16.1 mph |
| Transmission Type | Powershift |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 3 |
| Differential lock | F: LSD / R: LSD |
Brakes & Steering
| Service brake | Wet Multi Disc |
|---|
Bucket
| Bucket Capacity - heaped | 6.30 yd³ |
|---|---|
| Bucket Capacity - struck | 4.60 yd³ |
| Dump Clearance at Max Raise | 131 in |
| Breakout Force | 49,953 lb |
| Bucket Width | 126 in |
General Specifications
| Operating Weight | 59,578 (27,024) — Starting 2016 Model Year |
|---|---|
| Bucket Capacity | 6.3 (4.61) — Starting 2016 Model Year |
| Engine type | Case/FPT — Starting 2016 Model Year |
| Engine Power | 320 (238 ) — Starting 2016 Model Year |
| Max Dump Height | 10.5 (3.2) — Starting 2016 Model Year |
Hydraulic cycle times (unloaded)
| Total cycle time | 10.5 s |
|---|
