Kawasaki

70TMV-2

Wheel Loader

Operating Weight
35,566 lb
Bucket Capacity - heaped
3.40 yd³
Gross Power
193.0 hp
Net Power
174.0 hp
All wheel loaders

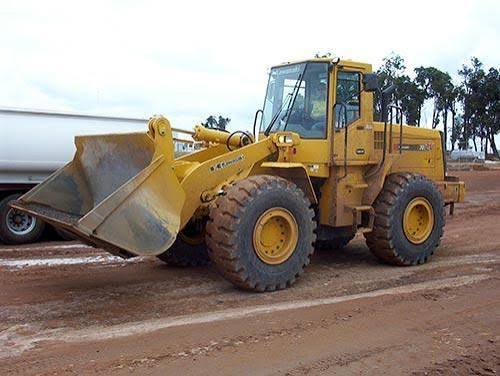

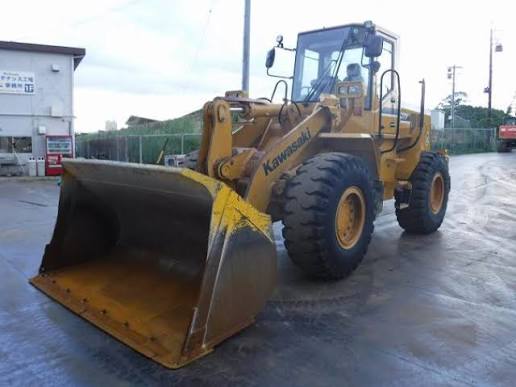

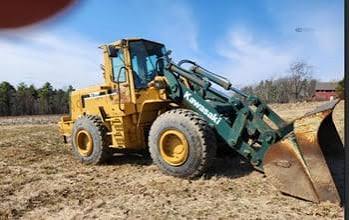

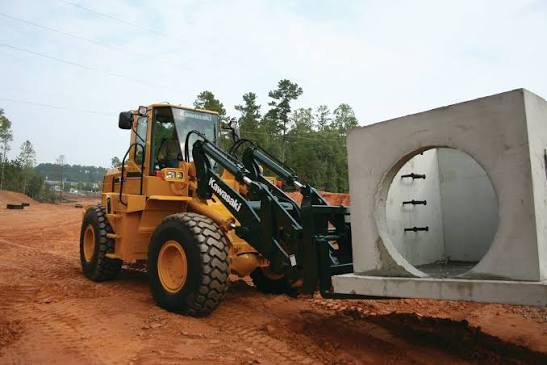

Kawasaki 70TMV-2 Wheel Loader
1 / 5
Image 1 of 5
Image: choateperformance.com

Specifications

51 data points

Operating Specifications

Operating Specifications specifications
Operating Weight35,566 lb
Fuel Capacity71.4 gal
Tire Size23.5x25-16PR (L-3)
Hydraulic System Fluid Capacity45.0 gal
Operating Voltage12 V
Turning Radius244 in
Rear Axle Oscillation11 °
Alternator Supplied Amperage70 A
Cooling System Fluid Capacity8.0 gal
Transmission Fluid Capacity11.9 gal
Rated Bucket Capacity3.40 yd³
Engine Oil Capacity6.4 gal
Static Tipping Load - Bucket23,170 lb
Front Diff Fluid Capacity13.3 gal
Rear Diff Fluid Capacity13.8 gal
Static Tipping Load - Forks24,095 lb
Static Tipping Load - Material Handler12,355 lb

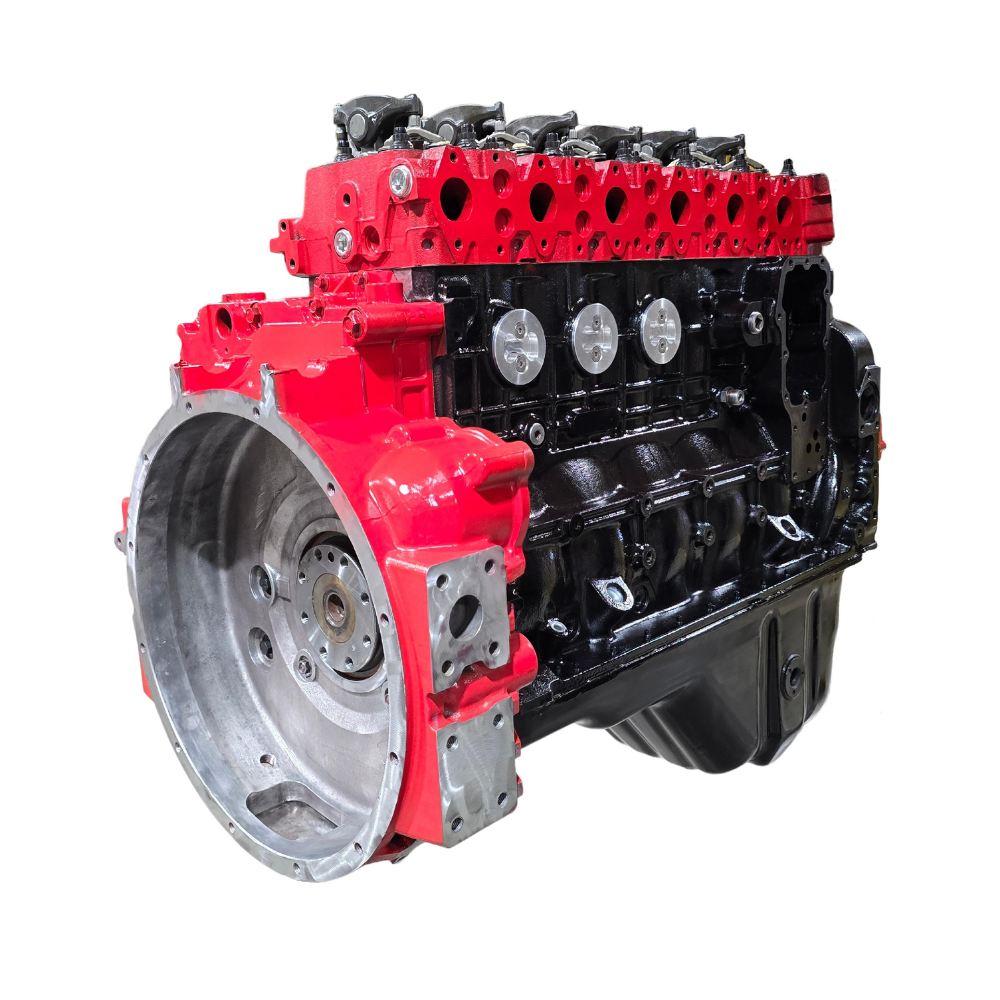

Engine

Engine specifications
Engine ModelQSB6.7
Displacement409 in³
Power Measured @2,200 rpm
Gross Power193.0 hp
Net Power174.0 hp
Number of Cylinders6
Aspirationturbo charged
Torque Measured @1,400 rpm
Max Torque657 lb-ft
MakeCummins

Weights

Weights specifications
Operating Weight35,566 lb

Hydraulic System

Hydraulic System specifications
Raise Time5.9 s
Lower Time3.1 s
Dump Time1.9 s
Relief Valve Setting3,000 psi
Pump Typegear type

Dimensions

Dimensions specifications
Ground Clearance18 in
Height - Top of Cab134 in
Wheelbase121 in
Width Over Tires104 in
Reach at Max Height and Dump48 in
Length w/ Bucket on Ground307 in
Dump Clearance at Max Lift119 in
Max Lift Height159 in
Length with out Forks on Ground323 in

Transmission

Transmission specifications
Max Speed - Forward23.4 mph
Max Speed - Reverse23.6 mph
Transmission Typefull power shift
Number of Forward Gears4
Number of Reverse Gears4

Bucket

Bucket specifications
Bucket Capacity - heaped3.40 yd³
Bucket Capacity - struck3.10 yd³
Dump Clearance at Max Raise119 in
Breakout Force29,300 lb
