John Deere

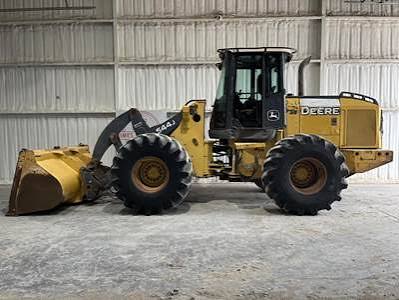

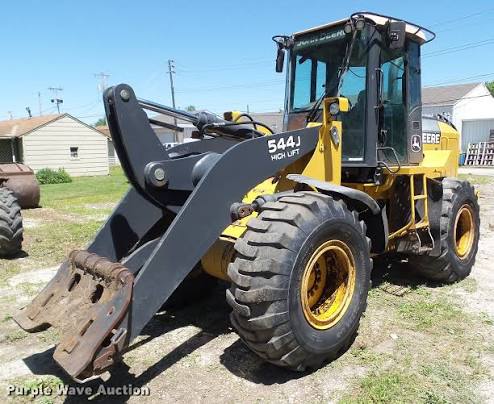

544J Waste Handler High-Lift
- Operating Weight
- 35,560 lb
- Bucket Capacity - heaped
- 5.00 yd³
- Net Power
- 167.0 hp
1 / 5
Image 1 of 5
Specifications
42 data points
Operating Specifications
| Operating Weight | 35,560 lb |
|---|---|
| Fuel Capacity | 85.0 gal |
| Tire Size | 20.5-25 |
| Hydraulic System Fluid Capacity | 26.0 gal |
| Static Tipping Weight | 21,008 lb |
| Operating Voltage | 24 V |
| Turning Radius | 196 in |
| Engine Oil Fluid Capacity | 5.6 gal |
| Rear Axle Oscillation | 16 ° |
| Alternator Supplied Amperage | 80 A |
| Front Axle/Diff Fluid Capacity | 4.5 gal |
| Rear Axle/Diff Fluid Capacity | 4.5 gal |
| Cooling System Fluid Capacity | 5.9 gal |
| Transmission Fluid Capacity | 4.9 gal |
Engine
| Engine Model | 6068H |
|---|---|
| Displacement | 414 in³ |
| Power Measured @ | 1,900 rpm |
| Net Power | 167.0 hp |
| Number of Cylinders | 6 |
| Torque Measured @ | 1,600 rpm |
| Torque Rise | 38.0 % |
Hydraulic System
| Pump Flow Capacity | 50.0 gal/min |
|---|---|
| Raise Time | 5.8 s |
| Lower Time | 3.3 s |
| Dump Time | 1.2 s |
| Relief Valve Setting | 3,650 psi |
| Pump Type | Variable axial piston |
Dimensions
| Ground Clearance | 18 in |
|---|---|
| Height - Top of Cab | 131 in |
| Wheelbase | 117 in |
| Reach at Max Lift and Dump | 36 in |
| Length with Bucket on Ground | 313 in |
| Hinge Pin - Max Height | 154 in |
Transmission
| Max Speed - Forward | 14.2 mph |
|---|---|
| Max Speed - Reverse | 15.0 mph |
| Transmission Type | Automatic Powershift |
| Number of Forward Gears | 3 |
| Number of Reverse Gears | 3 |
Bucket
| Bucket Capacity - heaped | 5.00 yd³ |
|---|---|
| Dump Clearance at Max Raise | 118 in |
| Breakout Force | 16,721 lb |
| Bucket Width | 101 in |
