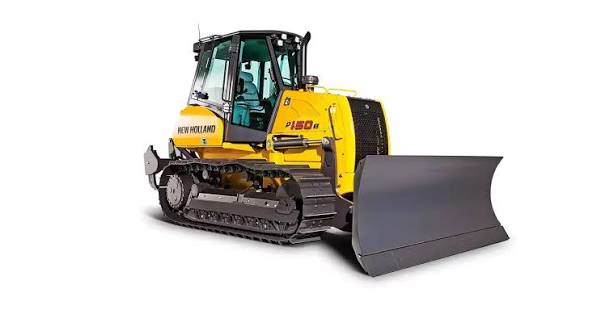

New Holland
D150
Crawler Dozer
40 specifications
1 / 5
Image 1 of 5
Specifications
59 data points
Operating Specifications
| Operating Weight | 32,637 lb |
|---|---|
| Long track | 31,134 lb |
| Low ground pressure | 32,637 lb |
| Winch | 2,447 lb |
| Sweeps | 139 lb |
| center rock guard | 296 lb |
Engine
| Engine Model | FPT F4HFE613F |
|---|---|
| Displacement | 409 in³ |
| Power Measured @ | 2,000 rpm |
| Gross Power | 138.0 hp |
| Net Power | 127.4 hp |
| Number of Cylinders | 6 |
| Emission Tier Level | Tier4 |
| Cooling system | Liquid |
| Fuel | 2 Diesel |
| Fuel injection | Common rail |
| Fuel tank | 85.1 gal |
| Transmission Type | Hydrostatic |
| Pump operating angles -Side-to-side | 35 ° |
| Pump operating angles - Fore and aft | 45 ° |
| Fan | 26.0 in(660mm)Diameter |
| Air intake | Cross-Flow |
| Diesel exhaust fluid (DEF) tank capacity | 13.8 gal |
Weights
| Ripper weight | 2,377 lb |
|---|---|
| Counterweight | 948 lb |
| Cab | 560 lb |
Hydraulic System
| Pump Type | Variable Displacement Piston |
|---|---|
| Lift cylinder - Rod diameter | 2 in |
| Lift cylinder - Stroke | 19 in |
| Lift cylinder(s) | 2 |
| Lift cylinder-Bore diameter | 4 in |
Dimensions
| Ground Clearance | 13 in |
|---|---|
| Height - Top of Cab | 116 in |
| Length of Track on Ground | 102 in |
| Width Over Tracks | 95 in |
| Height - Top of ROPS/FOPS | 116 in |
| Blade lift above ground | 37 in |
| Blade depth below ground | 20 in |
| Cast reach | 16 in |
Transmission
| Max Speed - Forward | 5.8 mph |
|---|---|
| Max Speed - Reverse | 5.8 mph |
Undercarriage
| Track Gauge | 1 in |
|---|---|
| Number of Shoes per Side | 43 |
| Number of Upper Rollers | 2 |
| Width of Shoes | 30 in |
| Number of bottom rollers per side | 7 |
Fluid Capacities
| Engine oil with filter | 4.4 gal |
|---|
Drive System
| Final drive | 2 helical gear |
|---|---|
| Max drawbar pull | 47,997 lb |
| Parking brakes | Heavy-duty spring-applied |
Blades
| Blade Width | 133 in |
|---|---|
| Blade Height | 44 in |
| Blade Capacity | 41.59 yd³ |
| Blade Type | PAT |
Standard Blade
| Blade Angle (both directions) | 25 ° |
|---|
Electrical System
| Alternator | — |
|---|---|
| Battery | 12-volt low-maintenance |
| Batteries | 2 volts |
Performance
| Pump Flow | 34.9 gal/min |
|---|
