Case
Schaffer
3150
Wheel Loader
23 specifications
1 / 5
Image 1 of 5
Specifications
46 data points
Operating Specifications
| Operating Weight | 10,849 lb |
|---|---|
| Fuel Capacity | 26.4 gal |
| Tire Size | 14.5x20 |
| Hydraulic System Fluid Capacity | 17.7 gal |
| Static Tipping Weight | 7,673 lb |
| Operating Voltage | 12 V |
| Turning Radius | 156 in |
| Engine Oil Fluid Capacity | 2.6 gal |
| Rear Axle Oscillation | 24 ° |
| Alternator Supplied Amperage | 55 A |
| Front Axle/Diff Fluid Capacity | 2.4 gal |
| Rear Axle/Diff Fluid Capacity | 2.4 gal |
| Rated Bucket Capacity | 1.18 yd³ |
Engine
| Engine Model | F4M2011 tier 2 certified |
|---|---|
| Displacement | 190 in³ |
| Power Measured @ | 2,400 rpm |
| Gross Power | 59.0 hp |
| Net Power | 57.0 hp |
| Number of Cylinders | 4 |
| Torque Measured @ | 1,700 rpm |
| Make | Case |
| Torque Rise | 6.0 % |
Weights
| Operating Weight | 10,849 lb |
|---|
Hydraulic System
| Pump Flow Capacity | 17.7 gal/min |
|---|---|
| Raise Time | 6.0 s |
| Lower Time | 3.0 s |
| Dump Time | 1.0 s |
| Relief Valve Setting | 3,916 psi |
| Pump Type | open centered pressure/flow compensated |
Dimensions
| Ground Clearance | 13 in |
|---|---|
| Height - Top of Cab | 111 in |
| Wheelbase | 89 in |
| Width Over Tires | 76 in |
| Reach at Max Lift and Dump | 33 in |
| Length with Bucket on Ground | 216 in |
| Hinge Pin - Max Height | 131 in |
Transmission
| Max Speed - Forward | 12.4 mph |
|---|---|
| Max Speed - Reverse | 12.4 mph |
| Transmission Type | hydrostatic transmission |
| Number of Forward Gears | 2 |
| Number of Reverse Gears | 2 |
Bucket
| Bucket Capacity - heaped | 1.20 yd³ |
|---|---|
| Bucket Capacity - struck | 0.90 yd³ |
| Dump Clearance at Max Raise | 101 in |
| Breakout Force | 9,337 lb |
| Bucket Width | 81 in |

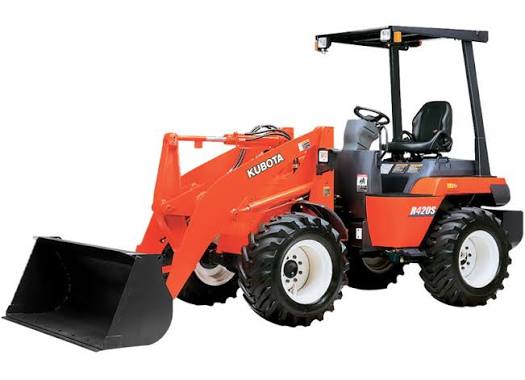

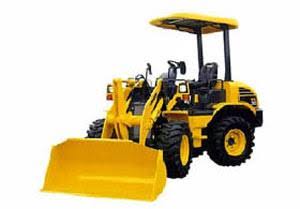

Comparable machines
