Kubota

R420S

Wheel Loader

Operating Weight
6,724 lb
Bucket Capacity - heaped
0.60 yd³
Gross Power
39.5 hp
Net Power
39.5 hp
All wheel loaders

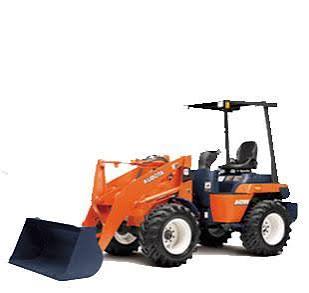

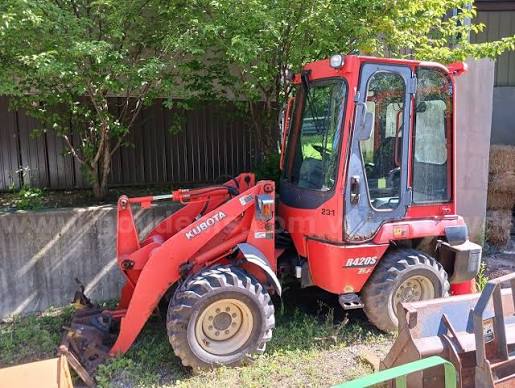

Kubota R420S Wheel Loader
1 / 5
Image 1 of 5
Image: veritread.com

Specifications

40 data points

Operating Specifications

Operating Specifications specifications
Operating Weight6,724 lb
Operating Weight 4wd7,518 lb
Tire Size12.5/70x16-8PR
Static Tipping Weight3,536 lb
Turning Radius122 in
Rated Bucket Capacity0.50 – 0.75 yd³

Engine

Engine specifications
Engine ModelD1503-TRP-1
Displacement92 in³
Power Measured @2,600 rpm
Gross Power39.5 hp
Net Power39.5 hp
Number of Cylinders3
MakeKubota

Weights

Weights specifications
Operating Weight7,450 lb

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity11.1 gal/min
Pump TypeGear
Relief Valve Pressure2,958 psi

Dimensions

Dimensions specifications
Ground Clearance12 in
Height - Top of Cab98 in
Wheelbase71 in
Width Over Tires60 in
Reach at Max Lift and Dump31 in
Length with Bucket on Ground165 in
Transport Width65 in
Transport Length187 in

Transmission

Transmission specifications
Max Speed - Forward12.5 mph
Max Speed - Reverse12.5 mph
Max Speed12.5 mph
Transmission TypeLST
Number of Forward Gears2
Number of Reverse Gears2

Bucket

Bucket specifications
Bucket Capacity - heaped0.60 yd³
Dump Clearance at Max Raise88 in
Bucket Width60 in

Backhoe

Backhoe specifications
Dig Depth109 in
Load Height80 in
Reach From Swivel146 in

Loader

Loader specifications
Bucket Capacity0.60 yd³
Bucket Width60 in
Clearance at Max Dump Height88 in
