Kubota
Case
21D
Wheel Loader
43 specifications
Kubota
R520S
- Operating Weight
- 8,025 lb
- Bucket Capacity - heaped
- 0.80 yd³
- Gross Power
- 44.4 hp
- Net Power
- 44.4 hp
1 / 5

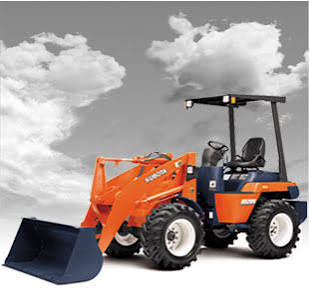

Image 1 of 5
Specifications
40 data points
Operating Specifications
| Operating Weight | 8,025 lb |
|---|---|
| Operating Weight 4wd | 8,025 lb |
| Tire Size | 15.5/60x18-8PR |
| Static Tipping Weight | 3,977 lb |
| Turning Radius | 134 in |
| Rated Bucket Capacity | 0.75 – 0.99 yd³ |
Engine
| Engine Model | V2203-RP |
|---|---|
| Displacement | 134 in³ |
| Power Measured @ | 2,600 rpm |
| Gross Power | 44.4 hp |
| Net Power | 44.4 hp |
| Number of Cylinders | 4 |
| Make | Kubota |
Weights
| Operating Weight | 8,980 lb |
|---|
Hydraulic System
| Pump Flow Capacity | 11.1 gal/min |
|---|---|
| Pump Type | Gear |
| Relief Valve Pressure | 2,958 psi |
Dimensions
| Ground Clearance | 13 in |
|---|---|
| Height - Top of Cab | 102 in |
| Wheelbase | 77 in |
| Width Over Tires | 60 in |
| Reach at Max Lift and Dump | 31 in |
| Length with Bucket on Ground | 183 in |
| Transport Width | 70 in |
| Transport Length | 203 in |
Transmission
| Max Speed - Forward | 12.5 mph |
|---|---|
| Max Speed - Reverse | 12.5 mph |
| Max Speed | 12.5 mph |
| Transmission Type | LST |
| Number of Forward Gears | 2 |
| Number of Reverse Gears | 2 |
Bucket
| Bucket Capacity - heaped | 0.80 yd³ |
|---|---|
| Dump Clearance at Max Raise | 104 in |
| Bucket Width | 70 in |
Backhoe
| Dig Depth | 109 in |
|---|---|
| Load Height | 80 in |
| Reach From Swivel | 146 in |
Loader
| Bucket Capacity | 0.80 yd³ |
|---|---|
| Bucket Width | 69 in |
| Clearance at Max Dump Height | 104 in |
