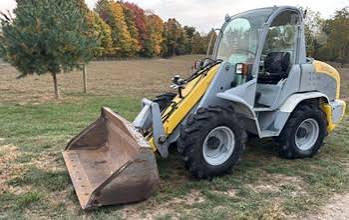

Case
Wacker Neuson
280
Wheel Loader
26 specifications
1 / 5
Image 1 of 5
Specifications
33 data points
Operating Specifications
| Operating Weight | 11,618 lb |
|---|---|
| Fuel Capacity | 22.8 gal |
| Turning Radius | 148 in |
| Rated Bucket Capacity | 1.60 yd³ |
Engine
| Engine Model | FPT F5H FL463 C F001 |
|---|---|
| Power Measured @ | 2,500 rpm |
| Gross Power | 64.0 hp |
| Net Power | 60.0 hp |
| Number of Cylinders | 4 |
| Torque Measured @ | 1,400 rpm |
| Max Torque | 261 lb-ft |
| Make | Case |
| Engine Type | 4-stroke |
| Emissions Certification | Final Tier 4 |
| Fuel | Diesel |
| Fuel injection | High pressure common rail injection |
| Air filter type | Dry type element with warning restriction indicator |
| Radiator Core type | All aluminium |
Weights
| Operating Weight | 11,596 lb |
|---|
Hydraulic System
| Pump Flow Capacity | 17.7 gal/min |
|---|---|
| Pump Type | Gear |
| Standard pressure | 3,626 psi |
Dimensions
| Ground Clearance | 18 in |
|---|---|
| Height - Top of Cab | 97 in |
| Wheelbase | 83 in |
| Width Over Tires | 70 in |
| Reach at Max Lift and Dump | 41 in |
| Length with Bucket on Ground | 223 in |
| Hinge Pin - Max Height | 126 in |
| Angle of departure | 28 ° |
Transmission
| Transmission Type | Hydrostatic transmission |
|---|
Bucket
| Bucket Capacity - heaped | 1.10 yd³ |
|---|---|
| Breakout Force | 8,970 lb |
