Case
1650K LGP
- Operating Weight
- 35,700 lb
- Max Speed - Forward
- 6.8 mph
- Gross Power
- 150.0 hp
- Net Power
- 140.0 hp
1 / 5

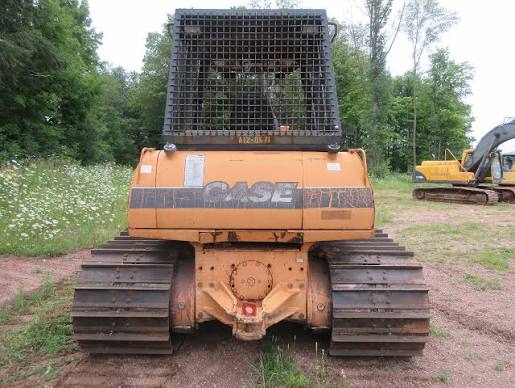

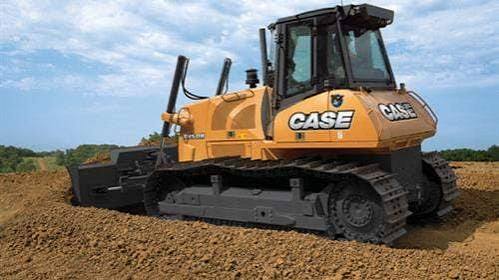

Image 1 of 5
Specifications
38 data points
Operating Specifications
| Operating Weight | 35,700 lb |
|---|---|
| Fuel Capacity | 71.3 gal |
| Cooling System Fluid Capacity | 9.2 gal |
| Final Drives Fluid Capacity | 4.8 gal |
| Engine Oil Capacity | 4.0 gal |
| Hydraulic Fluid Capacity | 16.4 gal |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 70 A |
Engine
| Engine Model | 6BTAA-5.9 |
|---|---|
| Displacement | 360 in³ |
| Power Measured @ | 2,200 rpm |
| Gross Power | 150.0 hp |
| Net Power | 140.0 hp |
| Number of Cylinders | 6 |
| Torque Measured @ | 1,300 rpm |
| Max Torque | 479 lb-ft |
Hydraulic System
| Pump Flow Capacity | 31.7 gal/min |
|---|---|
| Pump Type | Piston |
Dimensions
| Ground Clearance | 16 in |
|---|---|
| Height - Top of Cab | 121 in |
| Length of Track on Ground | 119 in |
| Width Over Tracks | 117 in |
| Length w/ Blade | 210 in |
Transmission
| Max Speed - Forward | 6.8 mph |
|---|---|
| Max Speed - Reverse | 8.1 mph |
| Transmission Type | Power Shift |
| Number of Forward Gears | 3 |
| Number of Reverse Gears | 3 |
Undercarriage
| Ground Pressure | 5 psi |
|---|---|
| Track Gauge | 85 in |
| Number of Track Rollers per Side | 8 |
| Number of Shoes per Side | 48 |
| Number of Carrier Rollers per Side | 2 |
| Standard Shoe Size | 32 in |
| Track Pitch | 7 in |
Standard Blade
| Width | 157 in |
|---|---|
| Height | 42 in |
| Capacity | 4.30 yd³ |
