Case

1650K XLT

Crawler Dozer

Operating Weight
33,780 lb
Max Speed - Forward
6.8 mph
Gross Power
150.0 hp
Net Power
140.0 hp
All crawler dozers

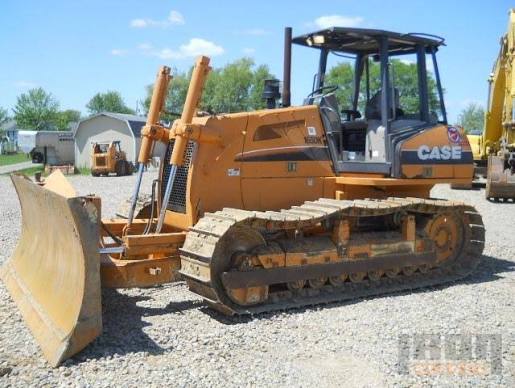

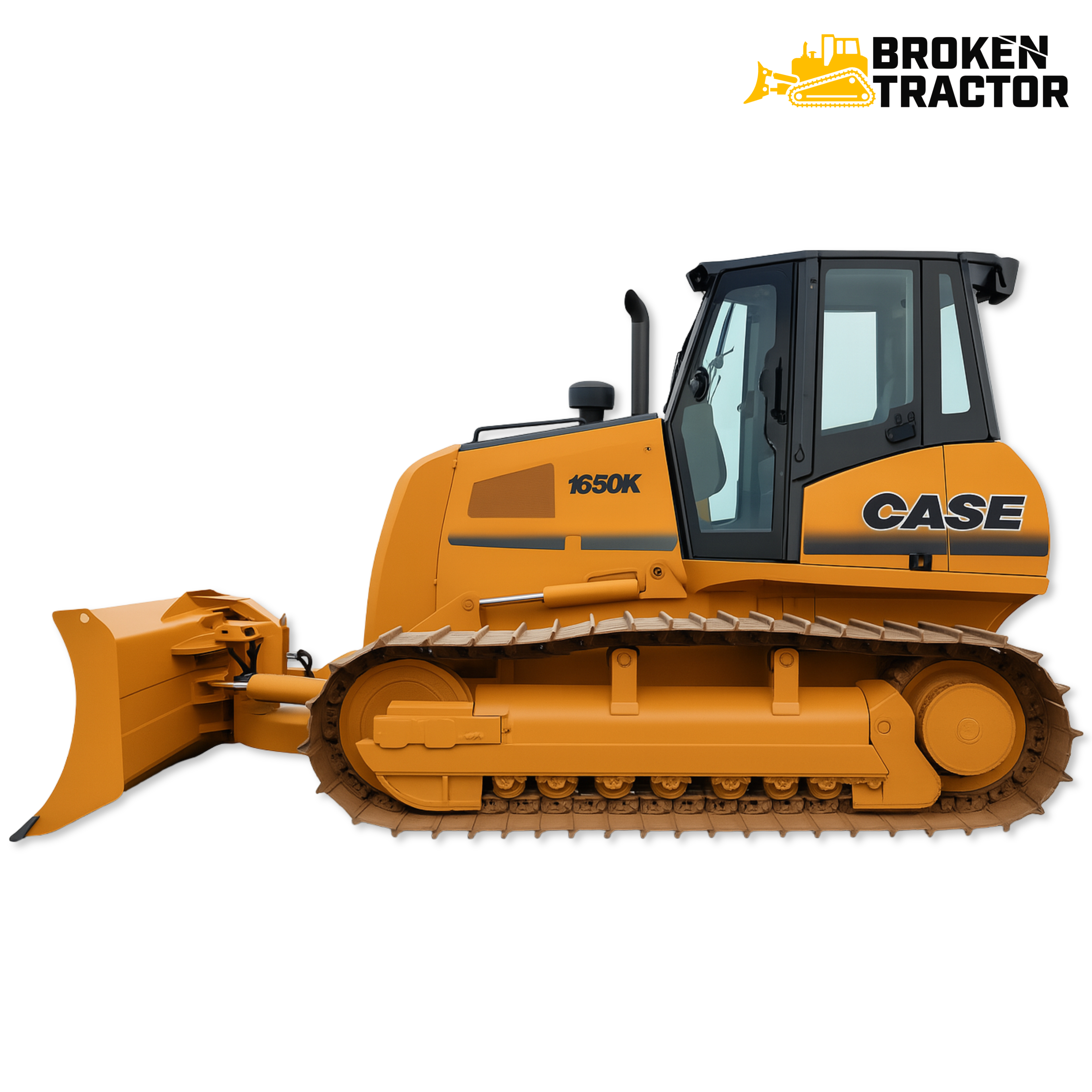

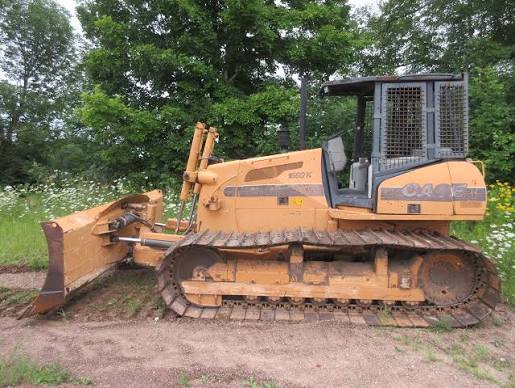

Case 1650K XLT Crawler Dozer
1 / 5
Image 1 of 5
Image: brokentractor.com

Specifications

38 data points

Operating Specifications

Operating Specifications specifications
Operating Weight33,780 lb
Fuel Capacity71.3 gal
Cooling System Fluid Capacity9.2 gal
Final Drives Fluid Capacity4.8 gal
Engine Oil Capacity4.0 gal
Hydraulic Fluid Capacity16.4 gal
Operating Voltage24 V
Alternator Supplied Amperage70 A

Engine

Engine specifications
Engine Model6BTAA-5.9
Displacement360 in³
Power Measured @2,200 rpm
Gross Power150.0 hp
Net Power140.0 hp
Number of Cylinders6
Torque Measured @1,300 rpm
Max Torque479 lb-ft

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity31.7 gal/min
Pump TypePiston

Dimensions

Dimensions specifications
Ground Clearance16 in
Height - Top of Cab121 in
Length of Track on Ground119 in
Width Over Tracks97 in
Length w/ Blade210 in

Transmission

Transmission specifications
Max Speed - Forward6.8 mph
Max Speed - Reverse8.1 mph
Transmission TypePower Shift
Number of Forward Gears3
Number of Reverse Gears3

Undercarriage

Undercarriage specifications
Ground Pressure7 psi
Track Gauge76 in
Number of Track Rollers per Side8
Number of Shoes per Side48
Number of Carrier Rollers per Side2
Standard Shoe Size22 in
Track Pitch7 in

Standard Blade

Standard Blade specifications
Width126 in
Height47 in
Capacity4.20 yd³
