Case

1650L LGP

Crawler Dozer

Operating Weight
37,578 lb
Max Speed - Forward
6.0 mph
Gross Power
156.0 hp
Net Power
144.0 hp
All crawler dozers

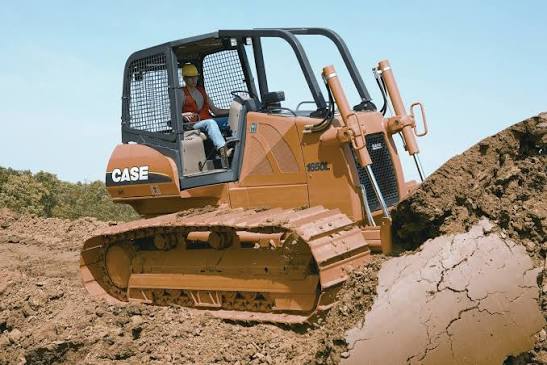

Case 1650L LGP Crawler Dozer
1 / 5
Image 1 of 5
Image: brokentractor.com

Specifications

39 data points

Operating Specifications

Operating Specifications specifications
Operating Weight37,578 lb
Fuel Capacity65.0 gal
Cooling System Fluid Capacity8.6 gal
Final Drives Fluid Capacity3.8 gal
Engine Oil Capacity4.4 gal
Hydraulic Fluid Capacity26.0 gal
Operating Voltage24 V
Alternator Supplied Amperage65 A

Engine

Engine specifications
Engine ModelFamily IV 667TA/EDJ
Displacement409 in³
Power Measured @2,200 rpm
Gross Power156.0 hp
Net Power144.0 hp
Number of Cylinders6
Torque Measured @1,400 rpm
Max Torque493 lb-ft
MakeCase

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity34.9 gal/min
Relief Valve Pressure2,830 psi

Dimensions

Dimensions specifications
Ground Clearance15 in
Height - Top of Cab119 in
Length of Track on Ground120 in
Width Over Tracks119 in
Length w/ Blade223 in

Transmission

Transmission specifications
Max Speed - Forward6.0 mph
Max Speed - Reverse6.0 mph
Transmission TypeHydrostatic

Undercarriage

Undercarriage specifications
Ground Pressure5 psi
Track Gauge84 in
Number of Track Rollers per Side8
Number of Shoes per Side45
Number of Carrier Rollers per Side2
Standard Shoe Size34 in
Ground Contact Area8,168 in³
Track Pitch8 in

Standard Blade

Standard Blade specifications
Width157 in
Height39 in
Capacity4.20 yd³
Blade Angle (both directions)28 °
