Case

1835C

Skid Steer Loader

Operating Weight
10,913 lb
Gross Power
48.0 hp
All skid steer loaders

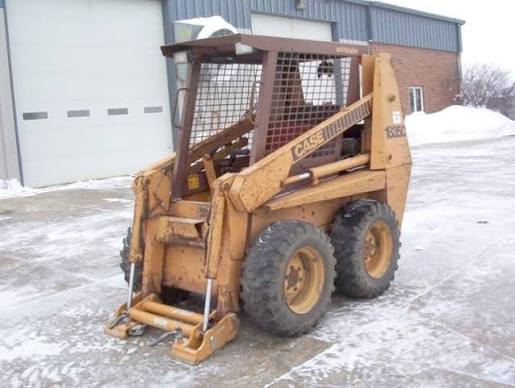

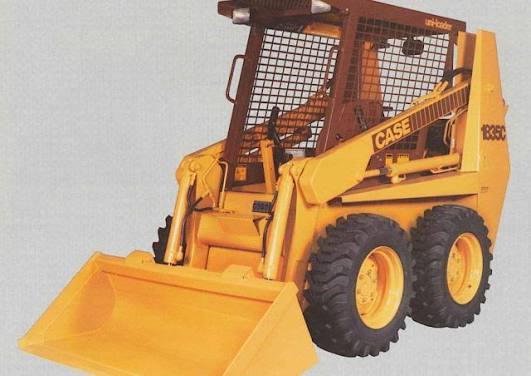

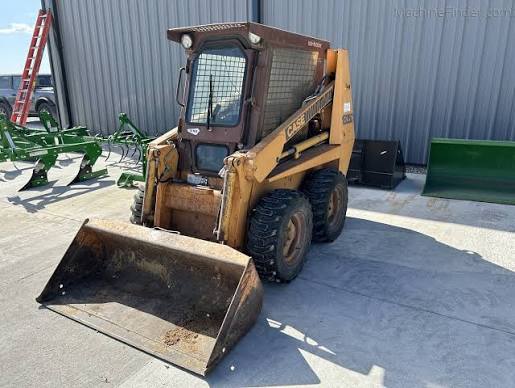

Case 1835C Skid Steer Loader
1 / 5
Image 1 of 5
Image: brokentractor.com

Specifications

28 data points

Operating Specifications

Operating Specifications specifications
Operating Weight10,913 lb
Fuel Capacity19.5 gal
Hydraulic System Fluid Capacity10.5 gal
Tire Size10.00 x 16.5
Operating Voltage12 V
Alternator Supplied Amperage65 A
Engine Oil Fluid Capacity1.5 gal
Cooling System Fluid Capacity4.5 gal
Chain Box Fluid Capacity - each side1.5 gal

Engine

Engine specifications
Engine ModelWis-Con TM20
Displacement123 in³
Power Measured @2,700 rpm
Gross Power48.0 hp
Number of Cylinders3
Bore4 in
Stroke4 in

Hydraulic System

Hydraulic System specifications
Pump TypeGear pump driven directl
Dump Time2.2 s
Lower Time2.3 s

Dimensions

Dimensions specifications
Ground Clearance7 in
Wheelbase37 in
Width Over Tires49 in
Height - Top of ROPS/FOPS77 in
Length with Bucket126 in
Length w/o Bucket97 in
Hinge pin height - fully raised111 in

Loader

Loader specifications
Operating Load Rating1,200 lb
Tipping load (ISO 14397)2,400 lb
