Case

1838

Skid Steer Loader

Operating Weight
5,216 lb
Max Speed
6.5 mph
Gross Power
46.0 hp
All skid steer loaders

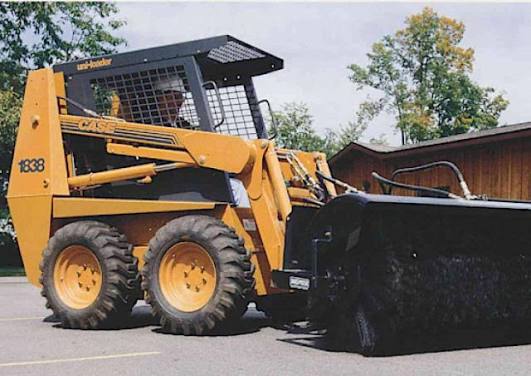

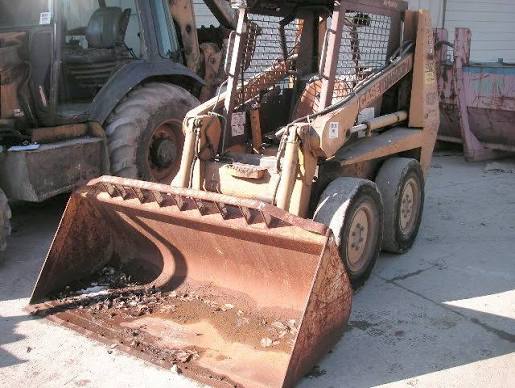

Case 1838 Skid Steer Loader
1 / 5
Image 1 of 5
Image: everythingattachments.com

Specifications

33 data points

Operating Specifications

Operating Specifications specifications
Operating Weight5,216 lb
Max Speed6.5 mph
Fuel Capacity19.5 gal
Hydraulic System Fluid Capacity15.8 gal
Tire Size10.00 x 16.5
Operating Voltage12 V
Alternator Supplied Amperage40 A
Cooling System Fluid Capacity2.1 gal
Chain Box Fluid Capacity - each side1.3 gal

Engine

Engine specifications
Engine ModelV2203DI-B
Displacement134 in³
Power Measured @2,800 rpm
Gross Power46.0 hp
Number of Cylinders4
Torque Measured @1,700 rpm
Max Torque114 lb-ft
Engine MakeKubota
Stroke4 in
Bore4 in

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity15.8 gal/min
Relief Valve Pressure2,300 psi
Pump TypeGear pump driven directl
Dump Time2.8 s
Lower Time2.5 s

Dimensions

Dimensions specifications
Ground Clearance7 in
Wheelbase37 in
Width Over Tires60 in
Height - Top of ROPS/FOPS77 in
Length with Bucket126 in
Length w/o Bucket97 in
Hinge pin height - fully raised111 in

Loader

Loader specifications
Operating Load Rating1,325 lb
Tipping load (ISO 14397)2,650 lb
