Case

1850K LGP

Crawler Dozer

Operating Weight
49,450 lb
Max Speed - Forward
6.8 mph
Gross Power
210.0 hp
Net Power
199.0 hp
All crawler dozers

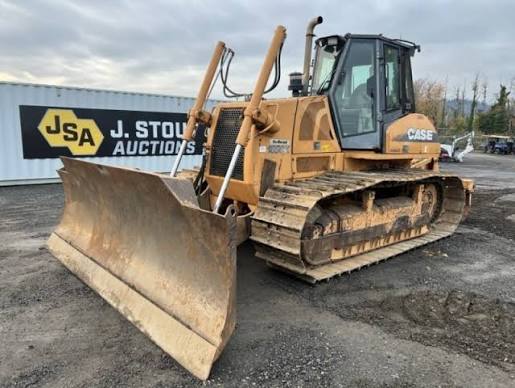

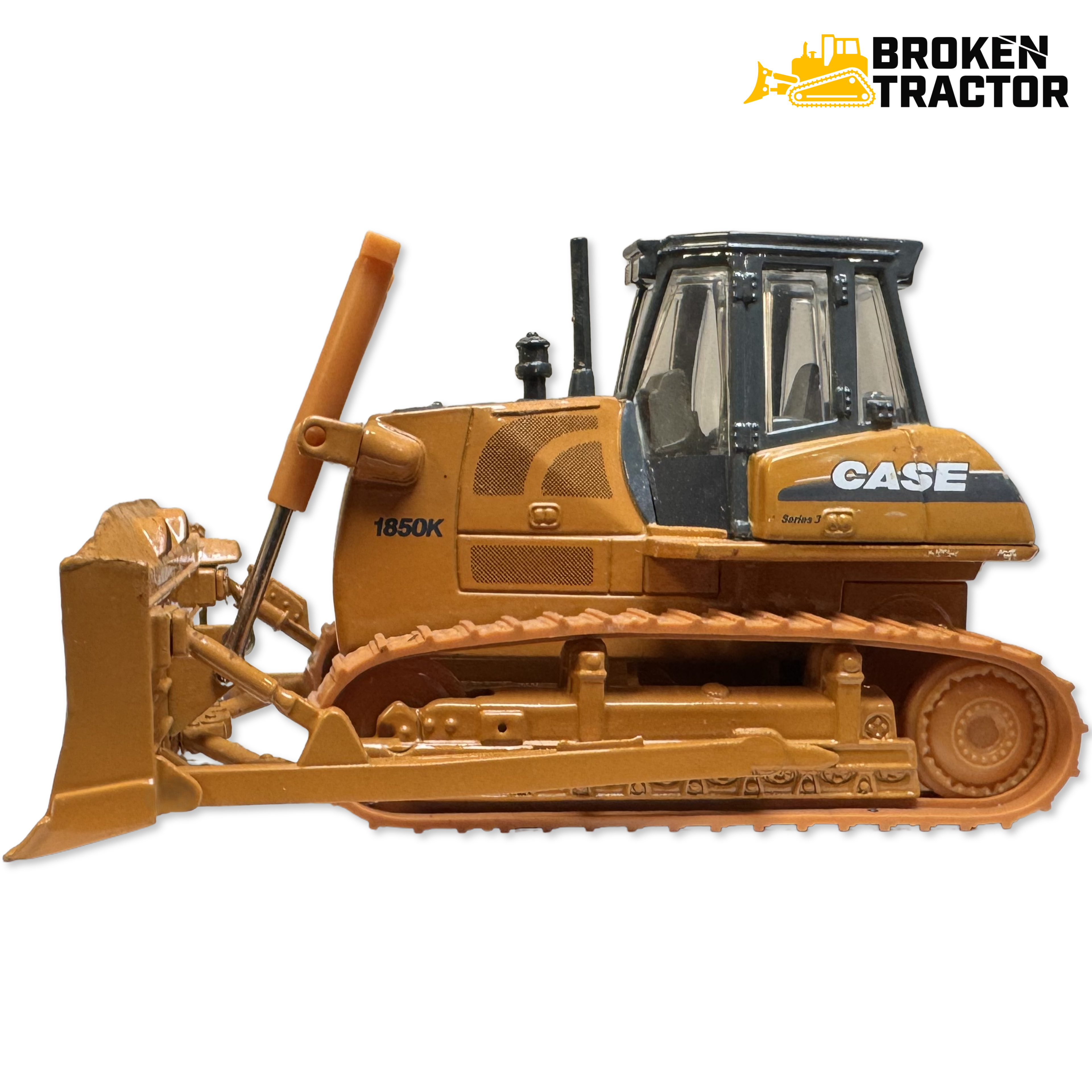

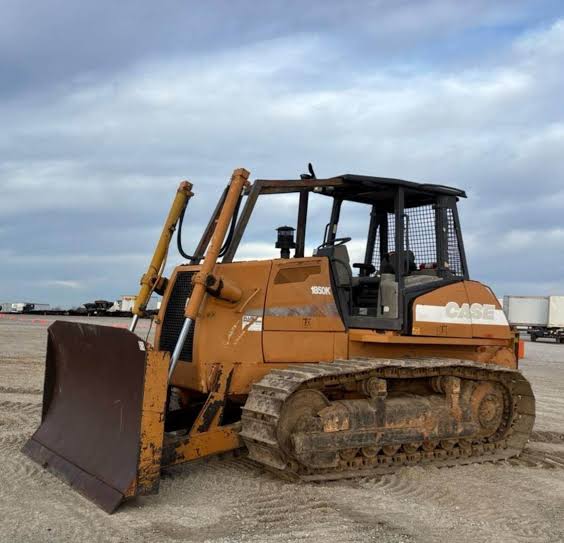

Case 1850K LGP Crawler Dozer
1 / 5
Image 1 of 5
Image: brokentractor.com

Specifications

40 data points

Operating Specifications

Operating Specifications specifications
Operating Weight49,450 lb
Fuel Capacity106.0 gal
Cooling System Fluid Capacity6.7 gal
Final Drives Fluid Capacity8.8 gal
Engine Oil Capacity5.1 gal
Hydraulic Fluid Capacity122.6 gal
Operating Voltage24 V
Alternator Supplied Amperage65 A

Engine

Engine specifications
Engine ModelCase Family IV 667TA/EBF
Displacement409 in³
Power Measured @2,000 rpm
Gross Power210.0 hp
Net Power199.0 hp
Number of Cylinders6
Torque Measured @1,400 rpm
Max Torque702 lb-ft
MakeCase

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity65.8 gal/min
Pump TypePiston

Dimensions

Dimensions specifications
Ground Clearance16 in
Height - Top of Cab182 in
Length of Track on Ground150 in
Width Over Tracks216 in
Length w/ Blade224 in

Transmission

Transmission specifications
Max Speed - Forward6.8 mph
Max Speed - Reverse8.1 mph
Transmission TypePower Shift
Number of Forward Gears3
Number of Reverse Gears3

Undercarriage

Undercarriage specifications
Ground Pressure5 psi
Track Gauge83 in
Number of Track Rollers per Side8
Number of Shoes per Side45
Number of Carrier Rollers per Side2
Standard Shoe Size36 in
Track Pitch8 in

Standard Blade

Standard Blade specifications
Width154 in
Height5 in
Capacity4.80 yd³
Blade Angle (both directions)45 °
