Case
Gehl
540
Wheel Loader
25 specifications
1 / 5

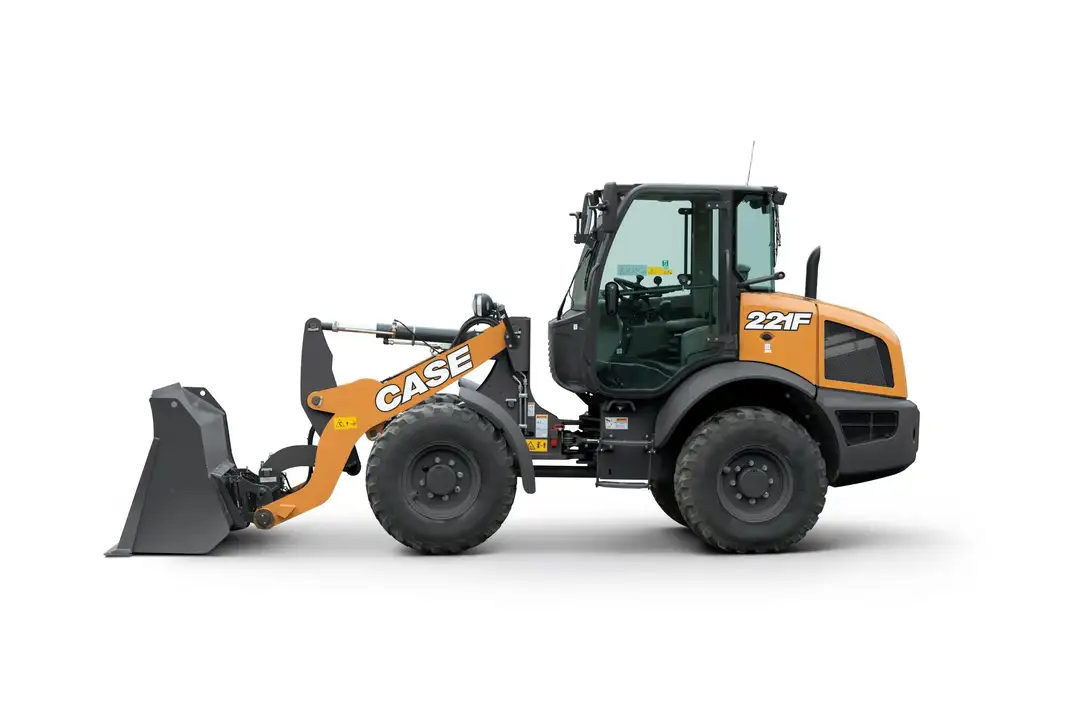

Image 1 of 5
Specifications
47 data points
Operating Specifications
| Operating Weight | 12,547 lb |
|---|---|
| Fuel Capacity | 22.8 gal |
| Hydraulic System Fluid Capacity | 14.1 gal |
| Engine Oil Fluid Capacity | 1.9 gal |
| Front Axle/Diff Fluid Capacity | 2.3 gal |
| Rear Axle/Diff Fluid Capacity | 2.7 gal |
| Cooling System Fluid Capacity | 3.5 gal |
| Rated Bucket Capacity | 1.73 yd³ |
Engine
| Engine Model | FPT F5H FL463 A F004 |
|---|---|
| Displacement | 207 in³ |
| Power Measured @ | 2,500 rpm |
| Gross Power | 74.0 hp |
| Net Power | 70.0 hp |
| Number of Cylinders | 4 |
| Torque Measured @ | 1,400 rpm |
| Max Torque | — |
| Make | Case |
| Stroke | 4 in |
| Bore | 4 in |
| Engine Type | 4-stroke |
| Emissions Certification | Final Tier 4 |
| Fuel | Diesel |
| Fuel injection | High pressure common rail injection |
| Air filter type | Dry type element with warning restriction indicator |
| Radiator Core type | All aluminium |
Weights
| Operating Weight | 12,500 lb |
|---|
Hydraulic System
| Pump Flow Capacity | 22.5 gal/min |
|---|---|
| Pump Type | Gear |
| Standard pressure | 3,626 psi |
Dimensions
| Ground Clearance | 18 in |
|---|---|
| Height - Top of Cab | 104 in |
| Wheelbase | 88 in |
| Width Over Tires | 74 in |
| Reach at Max Lift and Dump | 41 in |
| Length with Bucket on Ground | 231 in |
| Hinge Pin - Max Height | 130 in |
| Angle of departure | 27 ° |
Transmission
| Max Speed - Forward | 11.4 mph |
|---|---|
| Max Speed - Reverse | 11.4 mph |
| Transmission Type | Hydrostatic transmission |
| Number of Forward Gears | 2 |
| Number of Reverse Gears | 2 |
Bucket
| Bucket Capacity - heaped | 1.20 yd³ |
|---|---|
| Breakout Force | 10,948 lb |
Electrical System
| Voltage | 12 V |
|---|---|
| Alternator | 120 |
| Batteries | 95 AHR 900 CCA |
