Wacker Neuson

5055

Wheel Loader

Operating Weight
7,937 lb
Net Power
47.0 hp
All wheel loaders

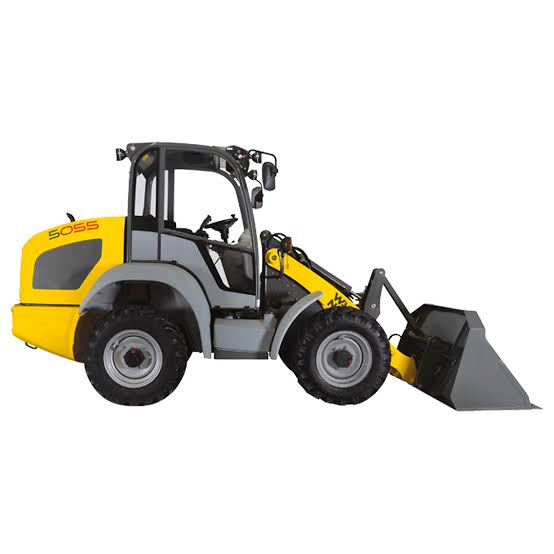

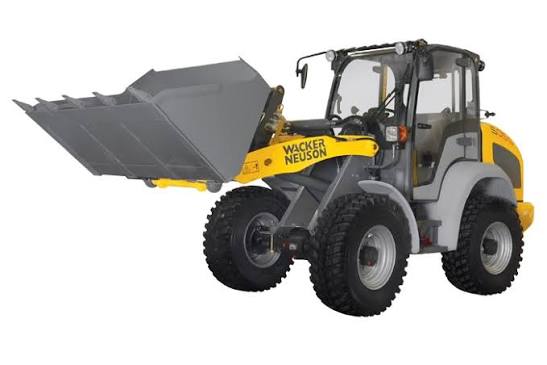

Wacker Neuson 5055 Wheel Loader
1 / 5
Image 1 of 5
Image: ebay.com

Specifications

28 data points

Operating Specifications

Operating Specifications specifications
Operating Weight7,937 lb
Fuel Capacity15.6 gal
Tire Size10.5-18
Hydraulic System Fluid Capacity61.3 gal
Operating Voltage12 V
Alternator Supplied Amperage55 A
Payload3,527 lb

Engine

Engine specifications
Displacement134 in³
Net Power47.0 hp
Engine MakeYanmar

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity22.2 gal/min
Relief Valve Setting3,481 psi

Dimensions

Dimensions specifications
Ground Clearance11 in
Height - Top of Cab95 in
Wheelbase73 in
Width Over Tires64 in
Reach at Max Lift and Dump12 in
Length with Bucket on Ground196 in
Hinge Pin - Max Height120 in

Transmission

Transmission specifications
Travel Speed12.4 mph

Bucket

Bucket specifications
Breakout Force6,295 lb
Bucket Width66 in
Tipping load Standard bucket4,762 lb

General Specifications

General Specifications specifications
Operating Weight7,938 (3,600) — Starting 2022 Model Year
Bucket Capacity0.85(.65) — Starting 2022 Model Year
Engine typeYanmar 4TNV88C — Starting 2022 Model Year
Engine Power46 (34) — Starting 2022 Model Year
Max Dump Height7.6 (2.31) — Starting 2022 Model Year
