Case

321E

Wheel Loader

Operating Weight
12,676 lb
Bucket Capacity - heaped
1.50 yd³
Gross Power
75.0 hp
Net Power
72.0 hp
All wheel loaders
Case 321E Wheel Loader
1 / 5
Image 1 of 5
Image: machinerymarketplace.net

Specifications

46 data points

Operating Specifications

Operating Specifications specifications
Operating Weight12,676 lb
Fuel Capacity26.4 gal
Tire Size405/70 R20
Hydraulic System Fluid Capacity19.5 gal
Static Tipping Weight9,744 lb
Operating Voltage12 V
Turning Radius163 in
Engine Oil Fluid Capacity2.7 gal
Rear Axle Oscillation24 °
Alternator Supplied Amperage55 A
Front Axle/Diff Fluid Capacity2.2 gal
Rear Axle/Diff Fluid Capacity2.2 gal
Rated Bucket Capacity1.44 yd³

Engine

Engine specifications
Engine ModelBF4M2011 tier 2 certified
Displacement190 in³
Power Measured @2,300 rpm
Gross Power75.0 hp
Net Power72.0 hp
Number of Cylinders4
Torque Measured @1,600 rpm
MakeCase
Torque Rise9.0 %

Weights

Weights specifications
Operating Weight12,676 lb

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity19.3 gal/min
Raise Time6.0 s
Lower Time3.0 s
Dump Time1.0 s
Relief Valve Setting3,626 psi
Pump Typeopen centered pressure/flow compensated

Dimensions

Dimensions specifications
Ground Clearance13 in
Height - Top of Cab110 in
Wheelbase94 in
Width Over Tires78 in
Reach at Max Lift and Dump36 in
Length with Bucket on Ground227 in
Hinge Pin - Max Height137 in

Transmission

Transmission specifications
Max Speed - Forward12.4 mph
Max Speed - Reverse12.4 mph
Transmission TypeHydrostatic
Number of Forward Gears2
Number of Reverse Gears2

Bucket

Bucket specifications
Bucket Capacity - heaped1.50 yd³
Bucket Capacity - struck1.20 yd³
Dump Clearance at Max Raise104 in
Breakout Force11,241 lb
Bucket Width83 in

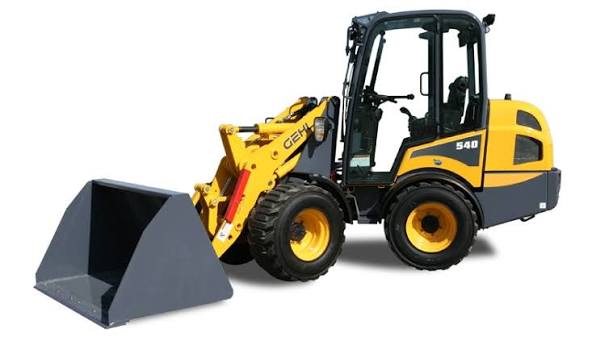

Comparable machines
