Case

330

Off-Highway Truck

Max Speed
27.7 mph
Gross Power
315.0 hp
Net Power
300.0 hp
All off-highway trucks

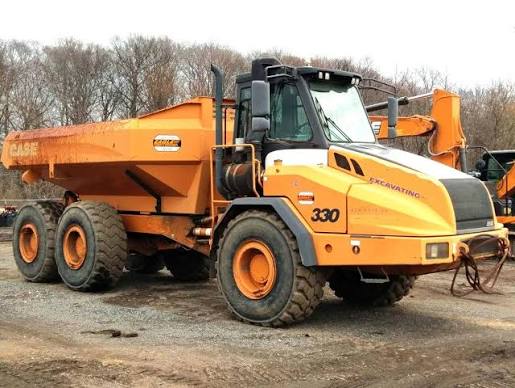

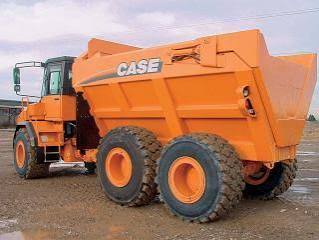

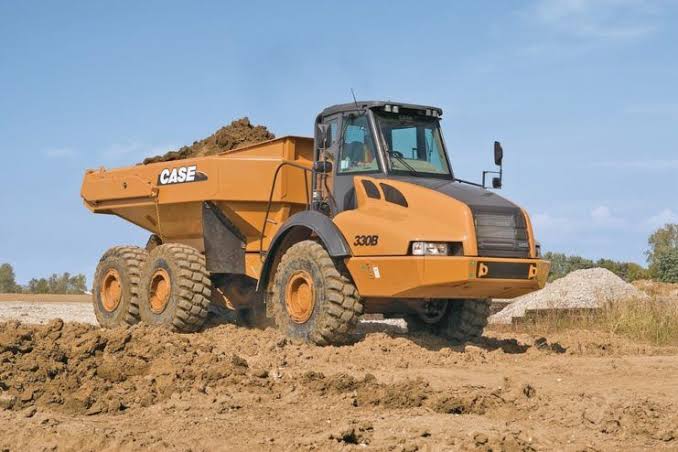

Case 330 Off-Highway Truck
1 / 5
Image 1 of 5
Image: clarkheavyequip.com

Specifications

45 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity86.0 gal
Tire Sizetubeless 23.5xR25
Engine Oil Capacity9.0 gal
Hydraulic System Fluid Capacity92.5 gal
Operating Voltage24 V
Alternator Supplied Amperage70 A
Transmission Fluid Capacity10.0 gal

Engine

Engine specifications
Engine ModelCat C7.1
Displacement428 in³
Power Measured @1,900 rpm
Gross Power315.0 hp
Net Power300.0 hp
Number of Cylinders6
AspirationTurbocharged and Aftercooled
Torque Measured @1,000 rpm
Max Torque1,180 lb-ft
Bore4 in
Stroke5 in
Net Power - ISO 9249273.0 hp
Net Power - SAE J1349272.0 hp

Weights

Weights specifications
Total Empty44,445 lb
Front Axle - empty22,619 lb
Total Loaded103,970 lb
Rear Axle - empty21,826 lb

Dimensions

Dimensions specifications
Ground Clearance19 in
Wheelbase236 in
Overall Length386 in
Overall Width117 in
Overall Height144 in
Dump Height253 in
Dump Ground Clearance35 in

Transmission

Transmission specifications
Max Speed27.7 mph
Transmission TypePower Shift
Number of Forward Gears6
Number of Reverse Gears3

Service Refill Capacities

Service Refill Capacities specifications
Cooling System6.6 gal
DEF Tank10.8 gal
Final Drive - Each1.5 gal
Swing Drive2.6 gal

Dump

Dump specifications
Rated Payload59,525 lb
Dump Angle67 °
Raise Time14.0 s
Lower Time16.0 s
Capacity - Heaped21.59 yd³
Capacity - Struck17.00 yd³
