Case

410 III

Skid Steer Loader

Operating Weight
5,430 lb
Bucket Capacity
0.50 yd³
Max Speed
6.5 mph
All skid steer loaders

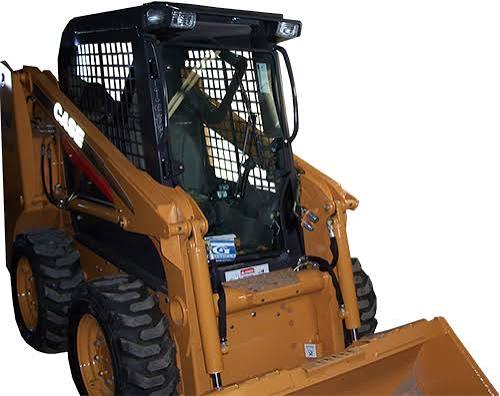

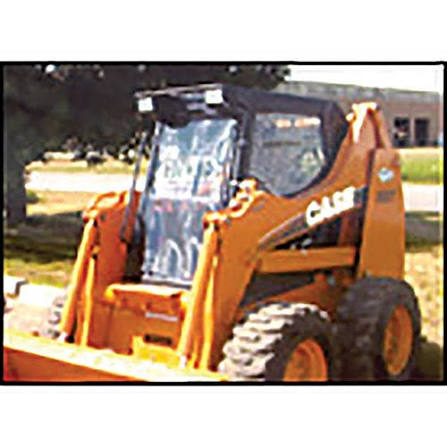

Case 410 III Skid Steer Loader
1 / 5
Image 1 of 5
Image: brokentractor.com

Specifications

33 data points

Operating Specifications

Operating Specifications specifications
Operating Weight5,430 lb
Max Speed6.5 mph
Fuel Capacity22.1 gal
Hydraulic System Fluid Capacity13.3 gal
Tire Size10.00 x 16.5 8 ply
Operating Voltage12 V
Alternator Supplied Amperage55 A
Engine Oil Fluid Capacity2.8 gal
Cooling System Fluid Capacity3.1 gal
Chain Box Fluid Capacity - each side2.1 gal
Operating Speed6.5 mph

Engine

Engine specifications
Engine Model422T/M3 diesel Tier III certified
Displacement134 in³
Power Measured @2,900 rpm
Number of Cylinders4
AspirationTurbocharged

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity19.5 gal/min
Relief Valve Pressure3,050 psi
Pump TypeGear

Dimensions

Dimensions specifications
Ground Clearance8 in
Height - Top of Cab79 in
Wheelbase42 in
Width Over Tires60 in
Reach at Max Lift and Dump24 in
Length with Bucket124 in
Clearance at Max Lift and Dump91 in
Turning Radius from Center - inc bucket73 in
Turning Radius from Center - machine rear54 in
Length w/o Bucket98 in

Loader

Loader specifications
Bucket Capacity0.50 yd³
Operating Load Rating1,501 lb
Tipping Angle3,001 °
Breakout Force3,751 psi
