Case

420CT Series 3

Compact Track Loader

Operating Weight
8,340 lb
Max Speed - high range
8.4 mph
Displacement
195 in³
Gross Power
74.0 hp
All compact track loaders

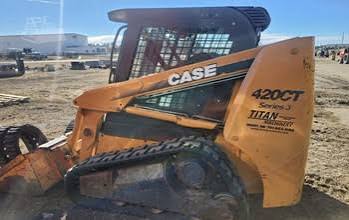

Case 420CT Series 3 Compact Track Loader
1 / 5
Image 1 of 5
Image: walmart.com

Specifications

37 data points

Operating Specifications

Operating Specifications specifications
Operating Weight8,340 lb
Max Speed - high range8.4 mph
Max Speed - low range5.8 mph
Fuel Capacity22.0 gal
Hydraulic System Fluid Capacity13.2 gal
Cooling System Fluid Capacity3.1 gal
Operating Voltage12 V
Alternator Supplied Amperage95 A
Engine Oil Capacity2.3 gal

Engine

Engine specifications
Engine Model432T/M3
Displacement195 in³
Power Measured @2,500 rpm
Gross Power74.0 hp
Net Power69.0 hp
Number of Cylinders4
AspirationTurbocharged
Torque Measured @1,400 rpm
Peak Torque203 lb-ft

Hydraulic System

Hydraulic System specifications
Pump Flow23.8 gal/min
Pump TypeGear

Dimensions

Dimensions specifications
Ground Clearance8 in
Height - Top of Cab80 in
Reach at Max Lift and Dump25 in
Width Over Tracks66 in
Length with Bucket130 in
Clearance at Max Lift and Dump96 in
Turning Radius from Center - inc bucket81 in
Turning Radius from Center - machine rear57 in
Length - without Bucket103 in

Undercarriage

Undercarriage specifications
Ground Pressure6 psi
Length of Track on Ground57 in
Width of Track13 in
Number of Track Rollers per Side3
Ground Contact Area1,424 in³

Loader

Loader specifications
Bucket Capacity0.60 yd³
Tipping Angle5,715 °
Operating Load2,860 lb
