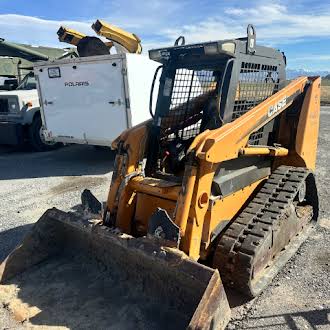

Case
ASV
PT-70
Compact Track Loader
32 specifications
1 / 5
Image 1 of 5
Specifications
40 data points
Operating Specifications
| Operating Weight | 8,915 lb |
|---|---|
| Max Speed - high range | 7.6 mph |
| Max Speed - low range | 5.1 mph |
| Fuel Capacity | 22.0 gal |
| Hydraulic System Fluid Capacity | 13.2 gal |
| Cooling System Fluid Capacity | 4.5 gal |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 95 A |
| Engine Oil Capacity | 3.2 gal |
Engine
| Engine Model | Family III 445T/M2 |
|---|---|
| Displacement | 274 in³ |
| Power Measured @ | 2,300 rpm |
| Gross Power | 89.0 hp |
| Net Power | 82.0 hp |
| Number of Cylinders | 4 |
| Aspiration | turbocharged |
| Torque Measured @ | 1,400 rpm |
| Peak Torque | 263 lb-ft |
Hydraulic System
| Pump Flow | 21.9 gal/min |
|---|---|
| Relief Valve Pressure | 3,000 psi |
| Pump Type | gear pump |
Dimensions
| Ground Clearance | 9 in |
|---|---|
| Height - Top of Cab | 77 in |
| Reach at Max Lift and Dump | 24 in |
| Width Over Tracks | 72 in |
| Length with Bucket | 127 in |
| Clearance at Max Lift and Dump | 97 in |
| Turning Radius from Center - inc bucket | 80 in |
| Turning Radius from Center - machine rear | 58 in |
| Length - without Bucket | 104 in |
Undercarriage
| Ground Pressure | 5 psi |
|---|---|
| Length of Track on Ground | 57 in |
| Width of Track | 16 in |
| Number of Track Rollers per Side | 3 |
| Ground Contact Area | 1,780 in³ |
| Track Gauge | 55 in |
Loader
| Bucket Capacity | 0.71 yd³ |
|---|---|
| Tipping Angle | 6,000 ° |
| Operating Load | 3,000 lb |
| Breakout Force | — |
