Case

445CT III

Compact Track Loader

Operating Weight
10,200 lb
Max Speed - high range
8.0 mph
Displacement
195 in³
Gross Power
82.0 hp
All compact track loaders

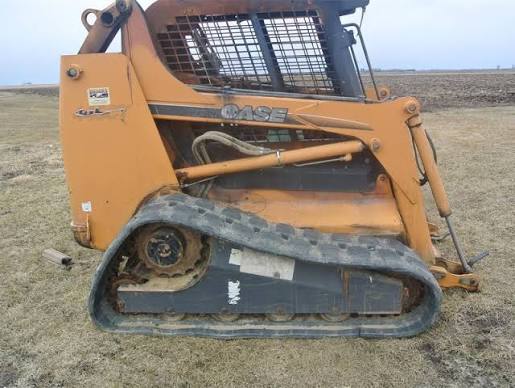

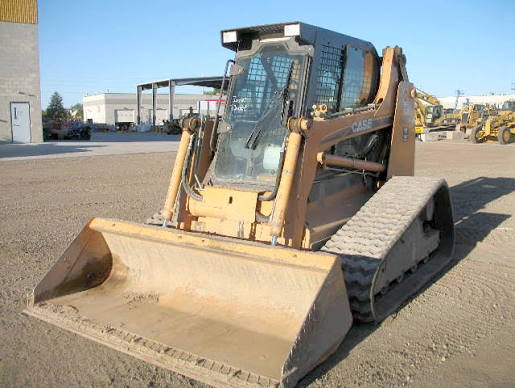

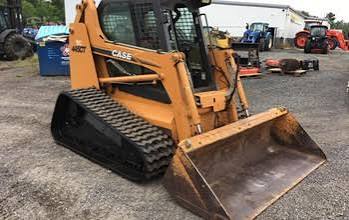

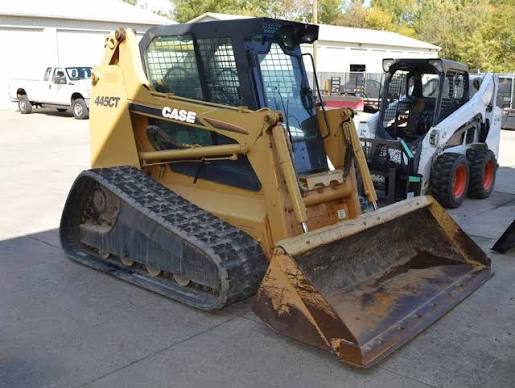

Case 445CT III Compact Track Loader
1 / 5
Image 1 of 5
Image: brokentractor.com

Specifications

37 data points

Operating Specifications

Operating Specifications specifications
Operating Weight10,200 lb
Max Speed - high range8.0 mph
Max Speed - low range5.1 mph
Fuel Capacity17.3 gal
Hydraulic System Fluid Capacity11.0 gal
Cooling System Fluid Capacity3.1 gal
Operating Voltage12 V
Alternator Supplied Amperage95 A
Engine Oil Capacity2.3 gal

Engine

Engine specifications
Engine Model432T/M3
Displacement195 in³
Power Measured @2,500 rpm
Gross Power82.0 hp
Net Power77.0 hp
Number of Cylinders4
AspirationTurbocharged
Torque Measured @1,400 rpm
Peak Torque229 lb-ft

Hydraulic System

Hydraulic System specifications
Pump Flow23.9 gal/min
Pump TypeGear

Dimensions

Dimensions specifications
Ground Clearance11 in
Height - Top of Cab84 in
Reach at Max Lift and Dump41 in
Width Over Tracks84 in
Length with Bucket135 in
Clearance at Max Lift and Dump89 in
Turning Radius from Center - inc bucket92 in
Turning Radius from Center - machine rear55 in
Length - without Bucket104 in

Undercarriage

Undercarriage specifications
Ground Pressure4 psi
Length of Track on Ground19,656 in
Width of Track18 in
Number of Track Rollers per Side4
Ground Contact Area2,293 in³

Loader

Loader specifications
Bucket Capacity0.80 yd³
Tipping Angle6,600 °
Operating Load3,300 lb
