Case

450CT

Compact Track Loader

Operating Weight
10,915 lb
Max Speed - high range
7.5 mph
Displacement
274 in³
Gross Power
88.0 hp
All compact track loaders

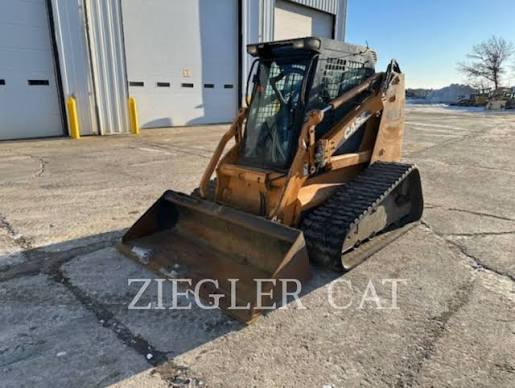

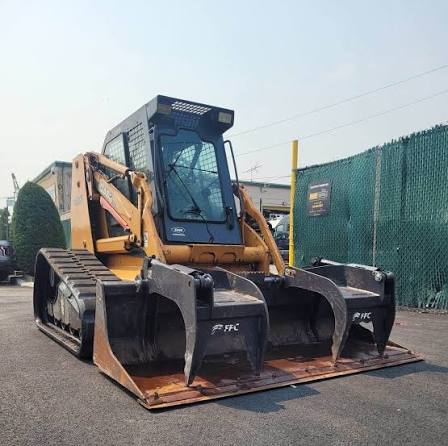

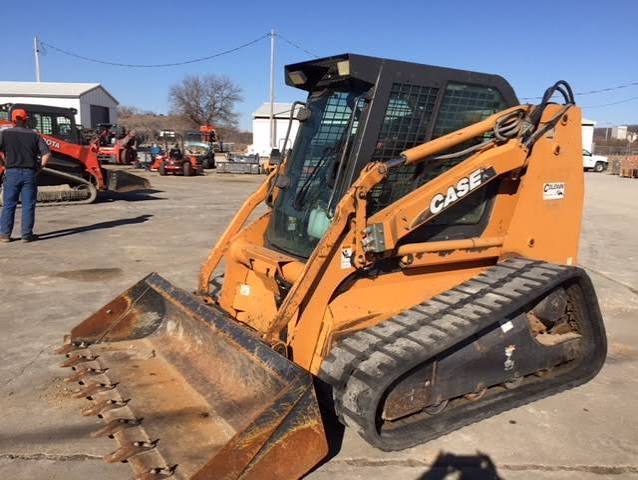

Case 450CT Compact Track Loader
1 / 5
Image 1 of 5
Image: brokentractor.com

Specifications

40 data points

Operating Specifications

Operating Specifications specifications
Operating Weight10,915 lb
Max Speed - high range7.5 mph
Max Speed - low range5.3 mph
Fuel Capacity20.7 gal
Hydraulic System Fluid Capacity17.0 gal
Cooling System Fluid Capacity4.5 gal
Operating Voltage12 V
Alternator Supplied Amperage95 A
Engine Oil Capacity3.2 gal

Engine

Engine specifications
Engine ModelFamily III 445T/M2 Tier II certified
Displacement274 in³
Power Measured @2,300 rpm
Gross Power88.0 hp
Net Power82.0 hp
Number of Cylinders4
Aspirationturbocharged
Torque Measured @1,400 rpm
Peak Torque263 lb-ft

Hydraulic System

Hydraulic System specifications
Pump Flow22.1 gal/min
Relief Valve Pressure3,000 psi
Pump Typegear pump

Dimensions

Dimensions specifications
Ground Clearance9 in
Height - Top of Cab80 in
Reach at Max Lift and Dump28 in
Width Over Tracks83 in
Length with Bucket142 in
Clearance at Max Lift and Dump95 in
Turning Radius from Center - inc bucket86 in
Turning Radius from Center - machine rear62 in
Length - without Bucket109 in

Undercarriage

Undercarriage specifications
Ground Pressure5 psi
Length of Track on Ground65 in
Width of Track18 in
Number of Track Rollers per Side4
Ground Contact Area2,293 in³
Track Gauge66 in

Loader

Loader specifications
Bucket Capacity0.80 yd³
Tipping Angle7,714 °
Operating Load3,858 lb
Breakout Force—
