Case

450CT Series 3

Compact Track Loader

Operating Weight
10,925 lb
Max Speed - high range
8.0 mph
Displacement
274 in³
Gross Power
90.0 hp
All compact track loaders

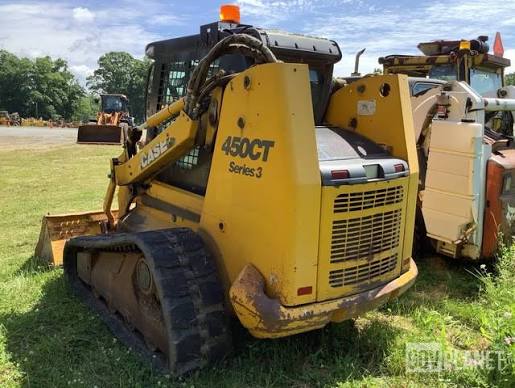

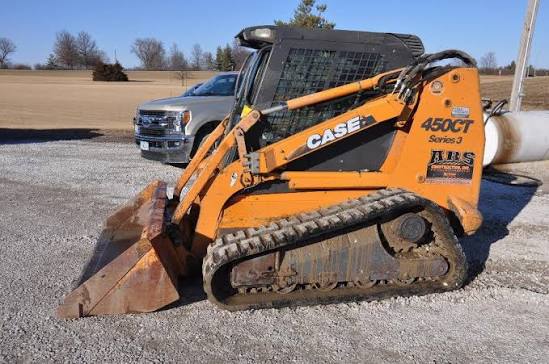

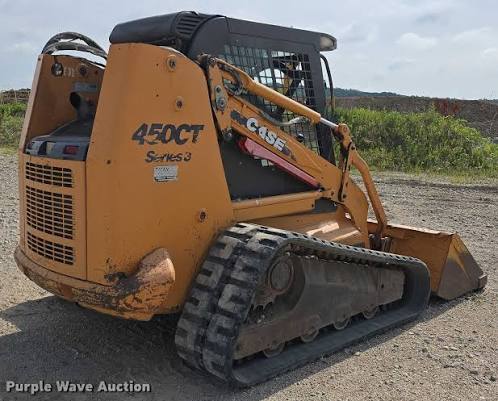

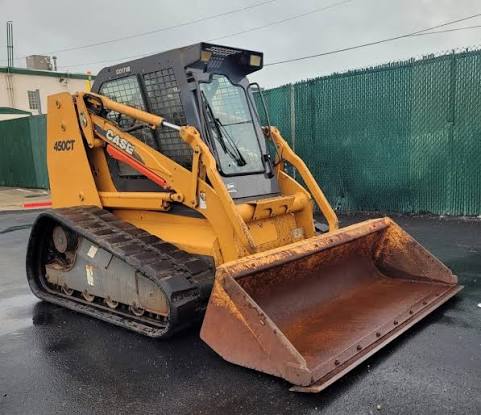

Case 450CT Series 3 Compact Track Loader
1 / 5
Image 1 of 5
Image: brokentractor.com

Specifications

37 data points

Operating Specifications

Operating Specifications specifications
Operating Weight10,925 lb
Max Speed - high range8.0 mph
Max Speed - low range5.1 mph
Fuel Capacity20.7 gal
Hydraulic System Fluid Capacity17.0 gal
Cooling System Fluid Capacity3.1 gal
Operating Voltage12 V
Alternator Supplied Amperage95 A
Engine Oil Capacity3.2 gal

Engine

Engine specifications
Engine Model445T/M3
Displacement274 in³
Power Measured @2,300 rpm
Gross Power90.0 hp
Net Power83.0 hp
Number of Cylinders4
AspirationTurbocharged
Torque Measured @1,300 rpm
Peak Torque288 lb-ft

Hydraulic System

Hydraulic System specifications
Pump Flow22.0 gal/min
Pump TypeGear

Dimensions

Dimensions specifications
Ground Clearance11 in
Height - Top of Cab84 in
Reach at Max Lift and Dump30 in
Width Over Tracks84 in
Length with Bucket142 in
Clearance at Max Lift and Dump96 in
Turning Radius from Center - inc bucket92 in
Turning Radius from Center - machine rear60 in
Length - without Bucket110 in

Undercarriage

Undercarriage specifications
Ground Pressure5 psi
Length of Track on Ground65 in
Width of Track18 in
Number of Track Rollers per Side4
Ground Contact Area2,293 in³

Loader

Loader specifications
Bucket Capacity0.80 yd³
Tipping Angle7,714 °
Operating Load3,857 lb
