Case

521D XT

Wheel Loader

Operating Weight
23,938 lb
Bucket Capacity - heaped
2.00 yd³
Gross Power
119.0 hp
Net Power
110.0 hp
All wheel loaders

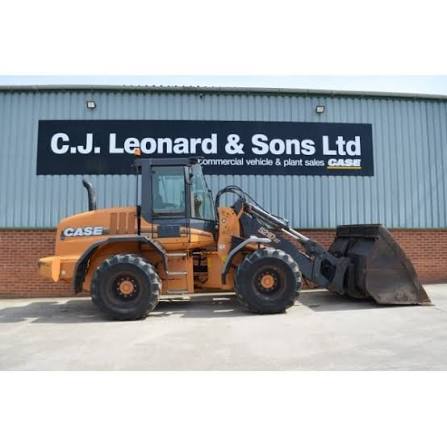

Case 521D XT Wheel Loader
1 / 5
Image 1 of 5
Image: cjleonard.co.uk

Specifications

45 data points

Operating Specifications

Operating Specifications specifications
Operating Weight23,938 lb
Fuel Capacity50.0 gal
Tire Size17.5x25
Hydraulic System Fluid Capacity30.0 gal
Static Tipping Weight18,424 lb
Operating Voltage24 V
Turning Radius196 in
Engine Oil Fluid Capacity3.4 gal
Rear Axle Oscillation24 °
Alternator Supplied Amperage70 A
Front Axle/Diff Fluid Capacity5.9 gal
Rear Axle/Diff Fluid Capacity5.9 gal
Cooling System Fluid Capacity5.8 gal
Transmission Fluid Capacity5.0 gal

Engine

Engine specifications
Engine ModelFamily III 445TA/M2 Tier II certified
Displacement275 in³
Power Measured @2,000 rpm
Gross Power119.0 hp
Net Power110.0 hp
Number of Cylinders4
AspirationTurbocharged and Aftercooled
Torque Measured @1,400 rpm
Torque Rise14.0 %

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity35.4 gal/min
Raise Time5.6 s
Lower Time3.7 s
Dump Time1.1 s
Relief Valve Setting2,750 psi
Pump Typeclosed centered pressure/flow compensated

Dimensions

Dimensions specifications
Ground Clearance16 in
Height - Top of Cab126 in
Wheelbase109 in
Width Over Tires91 in
Reach at Max Lift and Dump44 in
Length with Bucket on Ground265 in
Hinge Pin - Max Height148 in

Transmission

Transmission specifications
Max Speed - Forward23.4 mph
Max Speed - Reverse15.2 mph
Transmission Type4F/3R Proportional w/ Electronic Control Module torque sensing autoshift/manual shift and modulation
Number of Forward Gears4
Number of Reverse Gears3

Bucket

Bucket specifications
Bucket Capacity - heaped2.00 yd³
Dump Clearance at Max Raise109 in
Breakout Force21,929 lb
Bucket Width97 in
