Case
521E
- Operating Weight
- 23,069 lb
- Bucket Capacity - heaped
- 2.20 yd³
- Gross Power
- 129.0 hp
- Net Power
- 118.0 hp
1 / 5

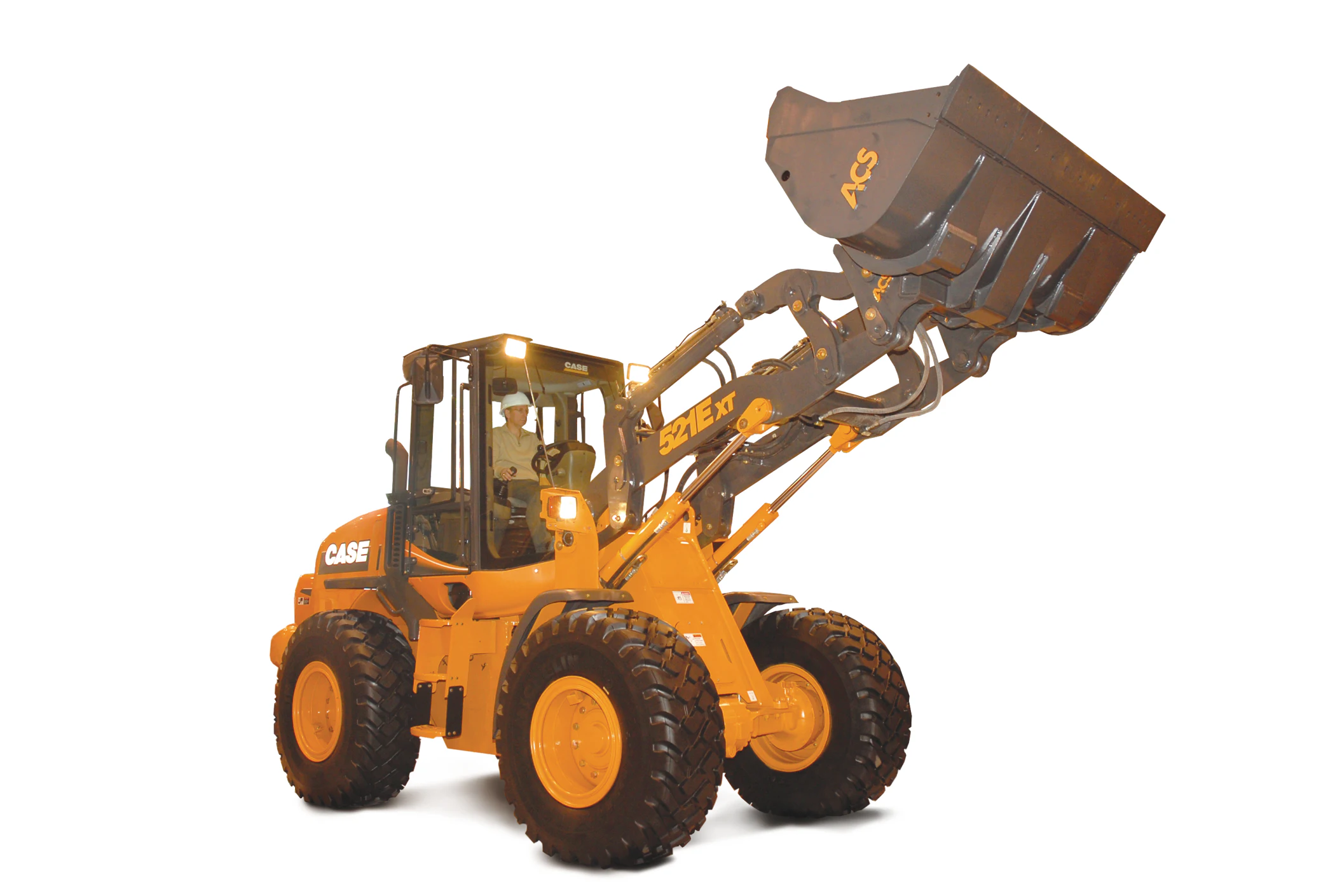

Image 1 of 5
Specifications
46 data points
Operating Specifications
| Operating Weight | 23,069 lb |
|---|---|
| Fuel Capacity | 50.0 gal |
| Tire Size | 17.5 x 25 L3 |
| Hydraulic System Fluid Capacity | 30.2 gal |
| Static Tipping Weight | 18,620 lb |
| Operating Voltage | 24 V |
| Turning Radius | 197 in |
| Engine Oil Fluid Capacity | 3.2 gal |
| Rear Axle Oscillation | 24 ° |
| Alternator Supplied Amperage | 70 A |
| Front Axle/Diff Fluid Capacity | 5.7 gal |
| Rear Axle/Diff Fluid Capacity | 5.7 gal |
| Cooling System Fluid Capacity | 5.9 gal |
| Transmission Fluid Capacity | 5.0 gal |
| Rated Bucket Capacity | 2.60 yd³ |
Engine
| Engine Model | 445TA/EGE |
|---|---|
| Displacement | 274 in³ |
| Power Measured @ | 1,800 rpm |
| Gross Power | 129.0 hp |
| Net Power | 118.0 hp |
| Number of Cylinders | 4 |
| Aspiration | Turbocharged |
| Torque Measured @ | 1,300 rpm |
| Make | Case |
| Torque Rise | 19.0 % |
Weights
| Operating Weight | 23,442 lb |
|---|
Hydraulic System
| Pump Flow Capacity | 35.4 gal/min |
|---|---|
| Raise Time | 5.6 s |
| Lower Time | 2.7 s |
| Dump Time | 1.1 s |
| Relief Valve Setting | 3,625 psi |
Dimensions
| Ground Clearance | 16 in |
|---|---|
| Height - Top of Cab | 130 in |
| Wheelbase | 109 in |
| Width Over Tires | 98 in |
| Reach at Max Lift and Dump | 39 in |
| Length with Bucket on Ground | 260 in |
| Hinge Pin - Max Height | 143 in |
Transmission
| Max Speed - Forward | 22.3 mph |
|---|---|
| Max Speed - Reverse | 14.1 mph |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 3 |
Bucket
| Bucket Capacity - heaped | 2.20 yd³ |
|---|---|
| Bucket Capacity - struck | 1.80 yd³ |
| Dump Clearance at Max Raise | 109 in |
| Bucket Width | 101 in |
