Case
521F
- Operating Weight
- 22,855 lb
- Bucket Capacity - heaped
- 2.20 yd³
- Gross Power
- 142.0 hp
- Net Power
- 131.0 hp
1 / 5

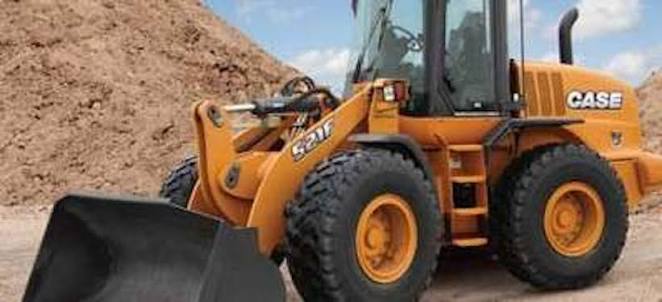

Image 1 of 5
Specifications
50 data points
Operating Specifications
| Operating Weight | 22,855 lb |
|---|---|
| Fuel Capacity | 50.0 gal |
| Operating Voltage | 24 V |
| Rear Axle Oscillation | 24 ° |
| Front Axle/Diff Fluid Capacity | 5.9 gal |
| Rear Axle/Diff Fluid Capacity | 5.9 gal |
| Cooling System Fluid Capacity | 5.9 gal |
| Transmission Fluid Capacity | 5.0 gal |
| Rated Bucket Capacity | 2.60 yd³ |
| DEF tank capacity | 11.2 gal |
Engine
| Engine Model | FPT F4HFE413NB |
|---|---|
| Displacement | 275 in³ |
| Gross Power | 142.0 hp |
| Net Power | 131.0 hp |
| Number of Cylinders | 4 |
| Max Torque | 448 lb-ft |
| Make | Case |
| Torque Rise | 21.0 % |
| Alternator | 70 A |
| Rated Engine Speed | 1,800 rpm |
| Emissions | Tier 4 |
Weights
| Operating Weight | 22,855 lb |
|---|
Hydraulic System
| Pump Flow Capacity | 35.4 gal/min |
|---|---|
| Pump Type | Piston |
| Steering pump type | Articulation |
Dimensions
| Ground Clearance | 16 in |
|---|---|
| Height - Top of Cab | 130 in |
| Wheelbase | 109 in |
| Width Over Tires | 98 in |
| Reach at Max Lift and Dump | 56 in |
| Hinge Pin - Max Height | 143 in |
| Overall length (L/bucket) | 260 in |
| Turning Radius Outside Tires | 158 in |
| Dump reach @ full height, 45 degrees dump | 39 in |
Transmission
| Max Speed - Forward | 22.3 mph |
|---|---|
| Transmission Type | Powershift |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 3 |
| Differential lock | F: LSD / R: LSD |
Brakes & Steering
| Service brake | Wet Multi Disc |
|---|
Bucket
| Bucket Capacity - heaped | 2.20 yd³ |
|---|---|
| Dump Clearance at Max Raise | 106 in |
| Breakout Force | 20,862 lb |
General Specifications
| Operating Weight | 22,856 (10,366) — Starting 2016 Model Year |
|---|---|
| Bucket Capacity | 2.6 (1.99) — Starting 2016 Model Year |
| Engine type | Case/FPT — Starting 2016 Model Year |
| Engine Power | 131 (98) — Starting 2016 Model Year |
| Max Dump Height | 9.1 (2.8) — Starting 2016 Model Year |
Hydraulic cycle times (unloaded)
| Total cycle time | 10.5 s |
|---|
Performance
| Tipping Load | 15,992 lb |
|---|
