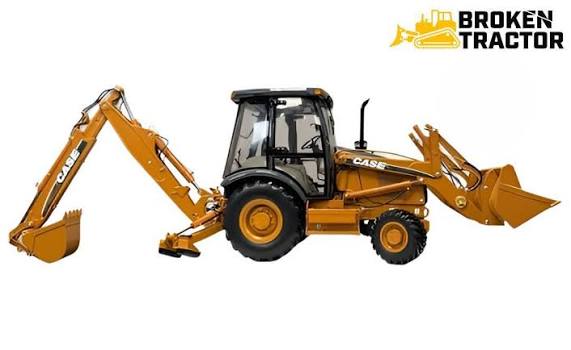

Case
Caterpillar
434E
Backhoe Loader
37 specifications
1 / 5
Image 1 of 5
Specifications
54 data points
Operating Specifications
| Operating Weight 4wd | 14,906 lb |
|---|---|
| Operating Weight | 14,905 lb |
| Fuel Capacity | 42.0 gal |
| Hydraulic System Fluid Capacity | 31.0 gal |
| Cooling System Fluid Capacity | 4.8 gal |
| Tire Size Front - 2wd / 4wd | / 12.5/80x16.5 8PR |
| Operating Voltage | 12 V |
| Oil System Fluid Capacity | 3.6 gal |
| Alternator Supplied Amperage | 90 A |
| Turning Radius | 135 in |
| Transmission Fluid Capacity | 5.2 gal |
| Max Weight | 18,128 lb |
| Rear Axle Fluid Capacity | 5.0 gal |
| Front Axle Fluid Capacity | 1.7 gal |
Engine
| Engine Model | Family IV 445TA/E3 Tier III certified |
|---|---|
| Displacement | 272 in³ |
| Power Measured @ | 2,200 rpm |
| Gross Power | 96.6 hp |
| Number of Cylinders | 4 |
| Aspiration | turbocharged |
| Torque Measured @ | 1,400 rpm |
| Net Max Torque | 326 lb-ft |
| Net Torque Rise | 0 |
Hydraulic System
| Pump Flow Capacity | 39.9 gal/min |
|---|---|
| Relief Valve Pressure | 3,000 psi |
| Pump Type | Piston variable displacement |
Dimensions
| Ground Clearance | 16 in |
|---|---|
| Wheelbase | 85 in |
| Transport Width | 94 in |
| Transport Length | 275 in |
| Height to Top of Suspended Cab | 108 in |
Transmission
| Max Speed - Reverse | 30.6 mph |
|---|---|
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 4 |
| Transmission Type | 4-speed synchromesh with hydraulically actual clutches |
Tires & Wheels
| Rear Tires Size | / 21Lx24 10PR |
|---|
Backhoe
| Max Digging Depth | 169 in |
|---|---|
| Reach From Swivel | 222 in |
| Dig Depth - Extended | 220 in |
| Load Height - Extended | 159 in |
| Bucket Dig Force | 12,821 lb |
| Reach From Swivel - Extended | 263 in |
| Reach at Load Height - Extended | 138 in |
| Bucket Dig Force - Extended | 12,821 lb |
| Loading Height | 139 in |
Loader
| Bucket Capacity | 1.29 yd³ |
|---|---|
| Clearance at Max Dump Height | 110 in |
| Bucket Breakout Force | 9,164 lb |
| Bucket Width | 93 in |
| Reach at Max Dump Height | 30 in |
| Dig Depth | 1 in |
| SAE - Net | 95.0 hp |
| Breakout Force | — |
Travel Speed
| 4th Gear Fwd | 25.4 mph |
|---|
