Case
Caterpillar
434E
Backhoe Loader
37 specifications
1 / 5

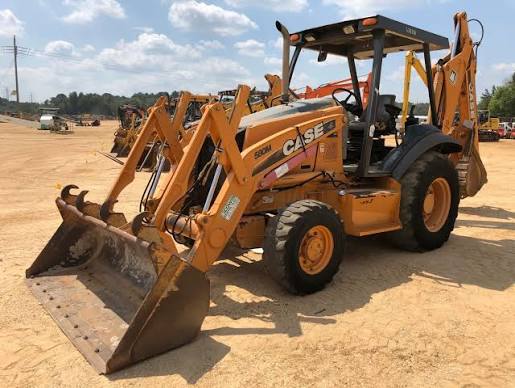

Image 1 of 5
Specifications
50 data points
Operating Specifications
| Operating Weight | 13,359 lb |
|---|---|
| Operating Weight 2wd | 13,360 lb |
| Fuel Capacity | 31.4 gal |
| Hydraulic System Fluid Capacity | 27.5 gal |
| Cooling System Fluid Capacity | 4.5 gal |
| Tire Size Front - 2wd / 4wd | 11Lx16.1/12x16.5 |
| Operating Voltage | 12 V |
| Oil System Fluid Capacity | 3.6 gal |
| Alternator Supplied Amperage | 90 A |
| Turning Radius | 132 in |
| Transmission Fluid Capacity | 5.2 gal |
| Max Weight | 16,510 lb |
| Rear Axle Fluid Capacity | 3.6 gal |
| Front Axle Fluid Capacity | 1.5 gal |
Engine
| Engine Model | Family III 445T/M3 Tier III certified |
|---|---|
| Displacement | 272 in³ |
| Power Measured @ | 2,200 rpm |
| Gross Power | 85.0 hp |
| Number of Cylinders | 4 |
| Aspiration | turbocharged |
| Torque Measured @ | 1,400 rpm |
| Net Max Torque | 271 lb-ft |
| Net Torque Rise | 0 |
Hydraulic System
| Pump Flow Capacity | 28.5 gal/min |
|---|---|
| Relief Valve Pressure | 3,050 psi |
| Pump Type | gear-type transmission driven |
Dimensions
| Ground Clearance | 16 in |
|---|---|
| Wheelbase | 85 in |
| Transport Width | 86 in |
| Transport Length | 278 in |
| Height to Top of Suspended Cab | 108 in |
Transmission
| Max Speed | 24.3 mph |
|---|---|
| Max Speed - Reverse | 29.2 mph |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 4 |
| Transmission Type | 4-speed synchromesh with hydraulically actuated clutches |
Tires & Wheels
| Rear Tires Size | 17.5Lx24/19.5Lx24 |
|---|
Backhoe
| Dig Depth | 172 in |
|---|---|
| Reach From Swivel | 215 in |
| Dig Depth - Extended | 220 in |
| Load Height - Extended | 159 in |
| Bucket Dig Force | 11,212 lb |
| Reach From Swivel - Extended | 263 in |
| Reach at Load Height - Extended | 138 in |
| Bucket Dig Force - Extended | 11,212 lb |
Loader
| Bucket Capacity | 1.10 yd³ |
|---|---|
| Clearance at Max Dump Height | 104 in |
| Bucket Width | 82 in |
| Reach at Max Dump Height | 29 in |
| Dig Depth | 8 in |
